CMS Administrator Guide

CMS Administrator Guide

(can be found also as PDF file in the attachment section)

About Pixellot

Pixellot offers automated sports production solutions that provide affordable alternatives to traditional video capture, production, and distribution systems for professional and semi-professional sports events. Founded in 2013, Pixellot’s AI technology solution streamlines production workflow by deploying an unmanned multicamera system in a fixed location, with additional angles as required, to cover the entire field, offering a stitched panoramic image. Advanced algorithms enable automatic coverage of the flow of play and generate highlights. Pixellot systems are deployed by broadcasters, production companies, clubs, federations, universities, high schools, sports portals, and coaching solution providers around the globe.

For more information visit: www.pixellot.tv


Legal Notice

This document contains proprietary and confidential material of Pixellot Ltd. Any unauthorized reproduction, use, or disclosure of this material, or any part thereof, is strictly prohibited. This document is solely for the use of Pixellot employees and authorized Pixellot customers.

The material furnished in this document is believed to be accurate and reliable. However, no responsibility is assumed by Pixellot Ltd. for the use of this document or any material included herein. Pixellot Ltd. reserves the right to make changes to this document or any material included herein at any time and without notice.

For more information visit: www.pixellot.tv

Copyright © 2022 Pixellot Ltd.

All Rights Reserved.


1.0 Introduction

The Pixellot CMS is the primary tool for managing Client / Team / Event configuration.  Due to the comprehensive nature and complexity of this system, this document is an evolving document.  This version covers basic functionality.
The CMS contains data and meta data for every event, including interface to view and update Event and Video records.
This powerful system enables the user to view and manage Video and Graphic content, which then seamlessly updates the relevant Web Site via the OTT API.
The CMS manages configuration for both live and on-demand video content, team logos, posters, and advertisements, and much more.
This CMS Administrator's Guide covers the system features and configuration options.
Other systems which integrate into the CMS, such as SPALK, LIGR, OTT, etc..., are covered in other manuals.

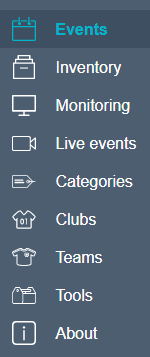

This Guide follows the CMS Menu.




2.0  Getting Started

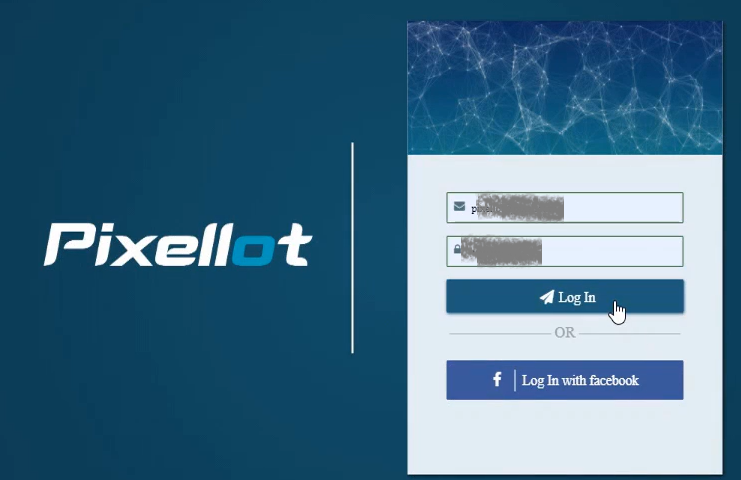

2.1  Login to CMS

  1. Go to the URL:   https://club.pixellot.tv/login
  2. Login using your Account Admin User details.





3.0  Events

3.1  Overview of Events Page

      The Events page is where Live and Upcoming Events, and VOD content are listed.

A.   Live & Upcoming Events:

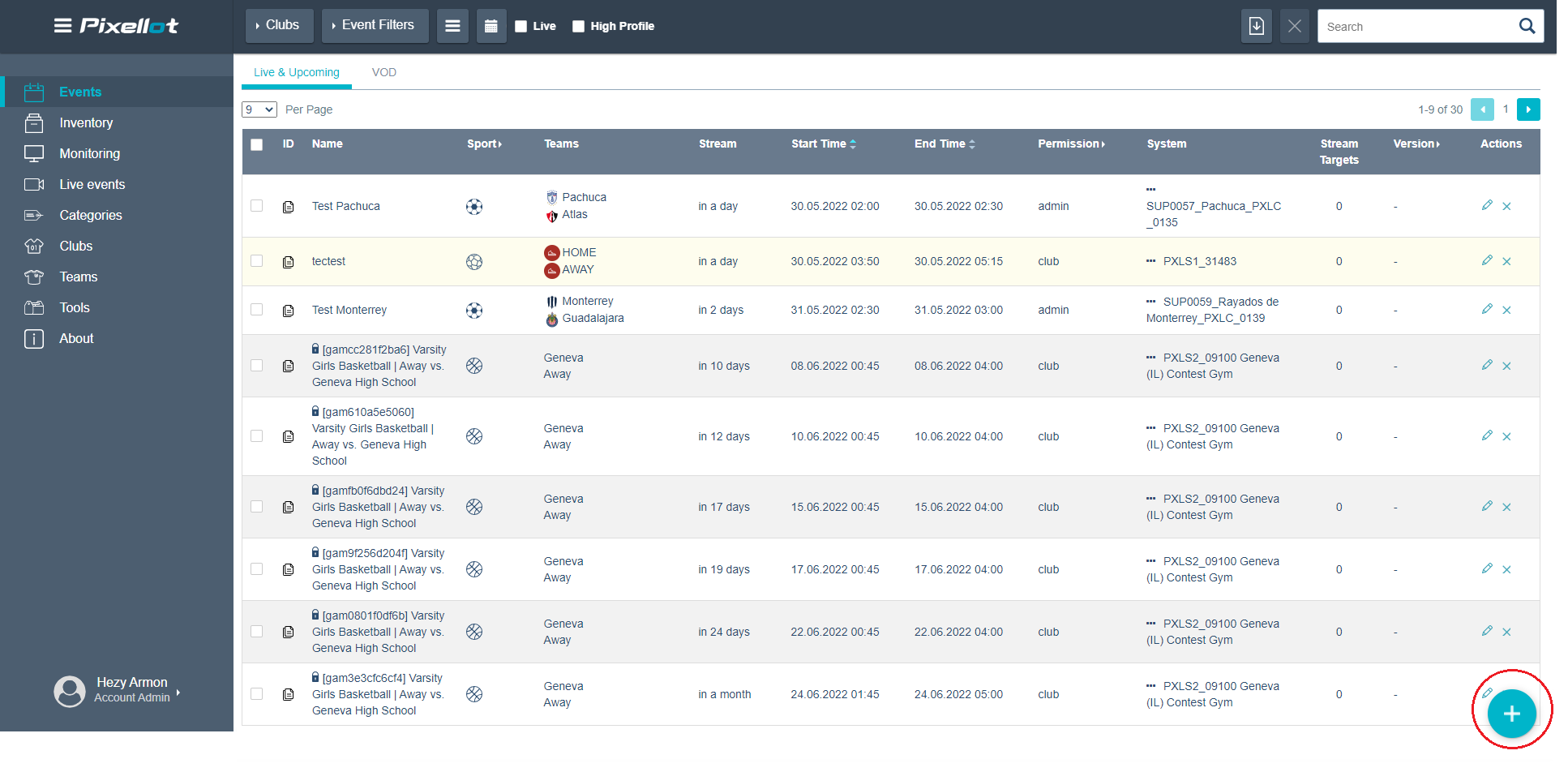

  1. Create new Events.
  2. View Live and Upcoming Events.
  3. Edit Live and Upcoming Events.
  4. Delete Event.





B. VOD Content:
  1. VOD Content is a Video repository of Events.

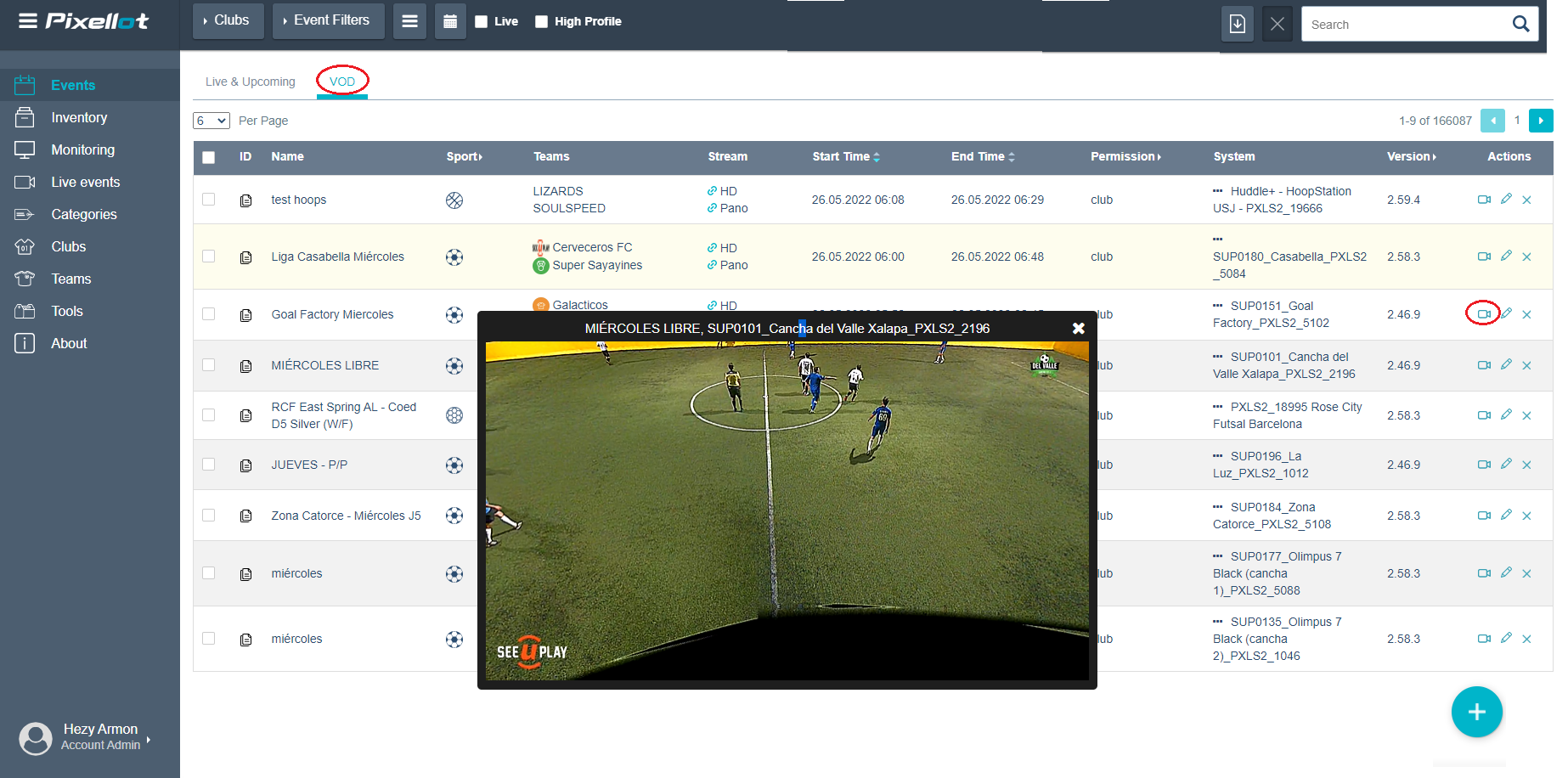

  2. View VOD content.  Click on Video icon  to view a saved Event.
  3. Edit VOD listings.
  4. Delete VOD record.




Due to the very large number of Event Records in the CMS, the filter and search options on the top of the page are useful tools to find a relevant Event.
A.   Clubs:

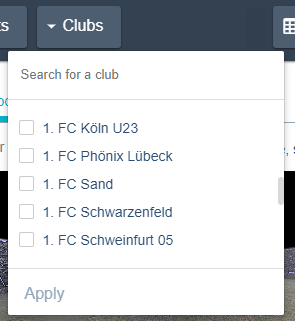

Click on Clubs, and a drop down appears, where the relevant Clubs/s can be selected.  After selection, hit APPLY.
                 .
B.   Event Filters:
Click on Event Filters, and a drop down appears, where the relevant Event Filter/s can be selected. After selection, hit APPLY.


C.   Toggle to Video view:
To toggle to Video view, click on the  icon.
 To return to normal Table view, click on the  icon.


D.   Choose Date Range:
Click on Date Range, and select the date range for the relevant Event/s to view.  After selection, press OK.



E   Select Live Events:
Click on the Live box, and select, to view only Live Events.

            F.   Search:
      Click on the Search bar, and select the relevant fields to search.

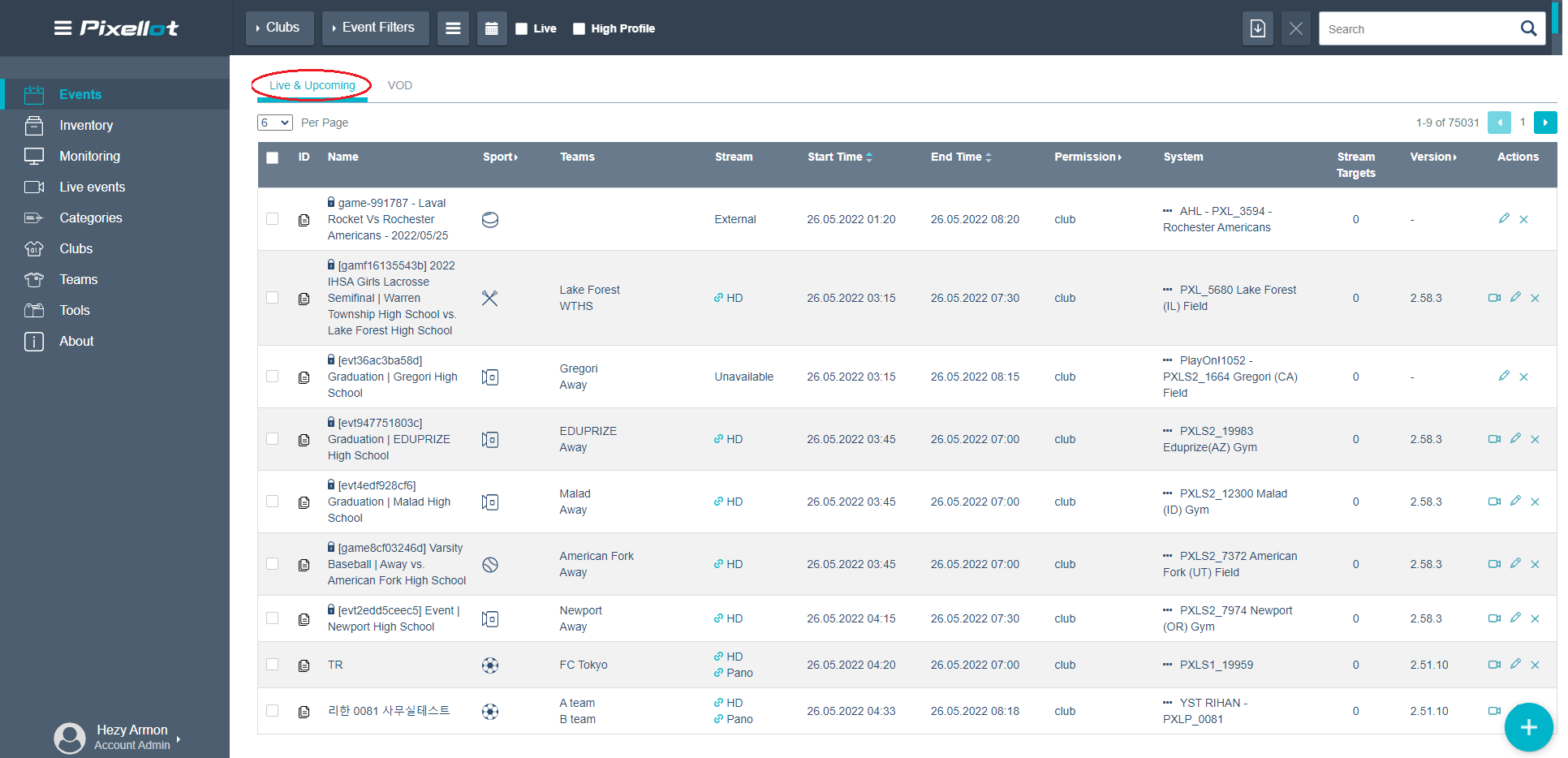

3.2  Events Table Overview

      The Events page table contains the following information:

      A.   Name:  Event Name

      B.   Sport: Select the relevant Sport to filter Events to the relevant Sport.  All events have an icon with the relevant Sport.


      C.   Teams:  Indicates the Team names which are competing during this event.

      D.   Stream:  Links to HD and Pano Video stream links.

      E.   Start Time: Sort by earliest and latest Start Time.

      F.   End Time: Sort by earliest and latest End Time.

      G.   Permission:  Select the relevant Permissions to filter.



      H.   System:  Name of Pixellot system.

      I.   Version:  Filter by Version.





      The Inventory page is where all the relevant Systems are listed.

All Systems are listed.
  1. Systems can be viewed and edited.





5.0  Monitoring

      This section is for Monitoring Systems and Live Events.


  1. All Events: Shows Live and Upcoming Events.
  2. Initializing: Shows Events about to begin.
  3. Problematic: Shows Events experiencing technical difficulties that require attention and resolution.




5.1  Top Filter Menu Bar

Due to the very large number of Records in the CMS, the filter and search options on the top of the page are useful tools to find a relevant Event.
A.   Event Filters:
Click on Event Filters, and a drop down appears, where the relevant Event Filters can be selected.  After selection, hit APPLY.


            C.   High Profile:
Click on the HIGH PROFILE  selection box, to filter results accordingly.

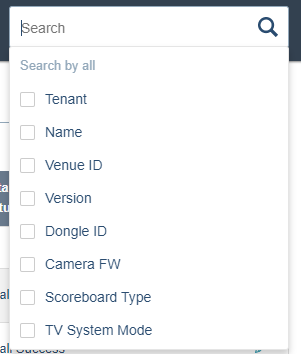

            D.   Search:
      Click on the Search bar, and select the relevant fields to search.

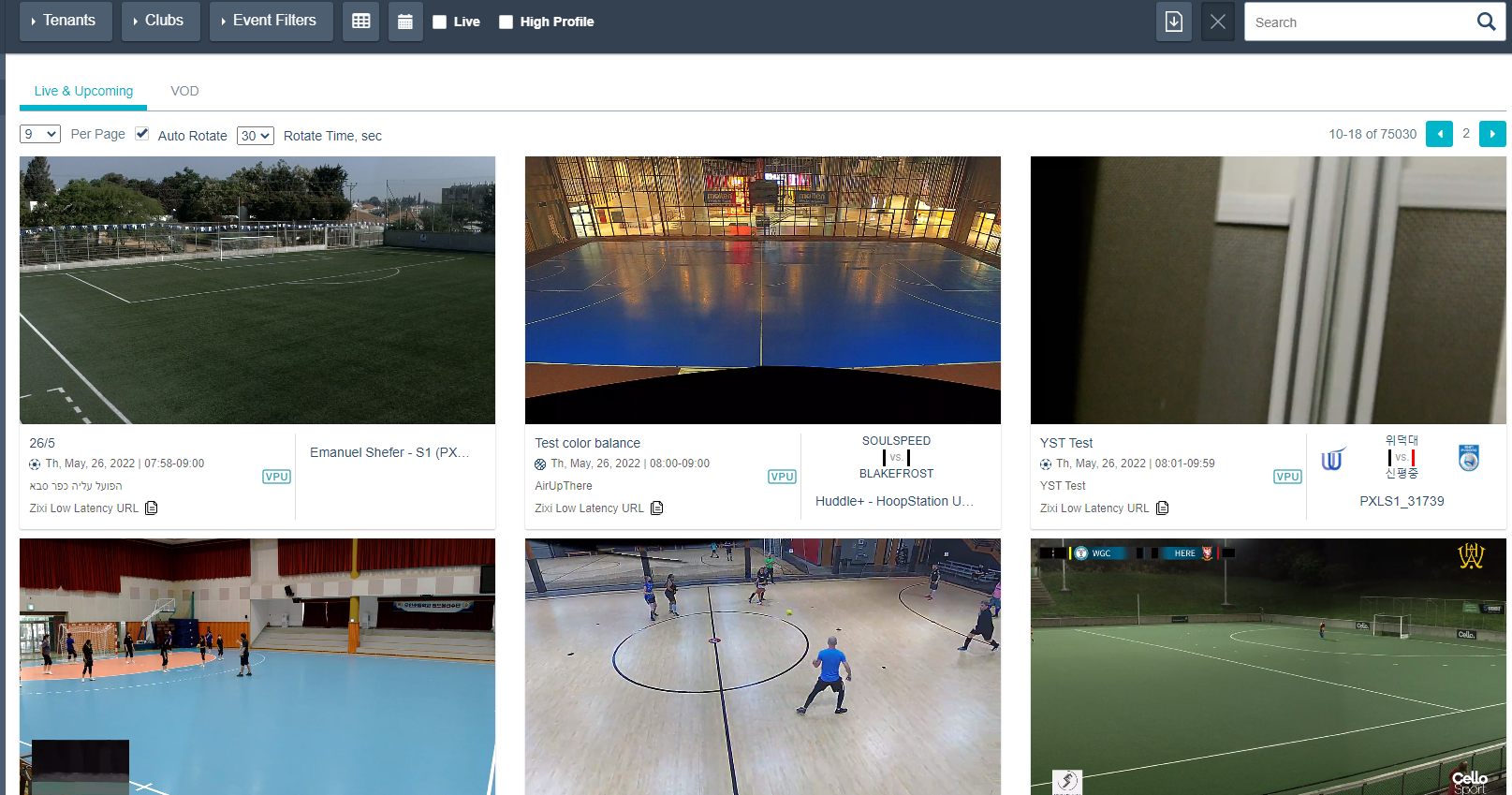

Live Events enables Admin to visually check to see if there are any problems with Live Streaming, and fix them quickly.

  1. Live & Upcoming: List of Live and Upcoming events.
  2. VOD: Saved Video recordings of Events.




6.1  Top Filter Menu Bar

Due to the very large number of Records in the CMS, the filter and search options on the top of the page are useful tools to find a relevant Event.

            A.  Clubs:  Select Live Events by Club.   After selection, hit APPLY.




B.   Event Filters:
Click on Event Filters, and a drop down appears, where the relevant Event Filters can be selected.  After selection, hit APPLY.



        C.   Toggle to Table view:
To toggle to Table view, click on the    icon.
 To return to Live Video view, click on the   icon.



D.   Choose Date Range:
Click on Date Range, and select the date range for the relevant Event/s to view.  After selection, press OK.


  E.   High Profile:
Click on the HIGH PROFILE  selection box, to filter results accordingly.

            F.   Search:
      Click on the Search bar, and select the relevant fields to search.


7.0  Categories

      This section is for creating and editing Main and Sub-Categories for the OTT.



7.1  Create New Main Category for OTT

A.  Click on Create New Category icon:
B.  Add a Name, select Tenant, Type - Main, and then Click on the SAVE button.
Note: For MAIN category, there is no need to choose Color Selection or LOGO.

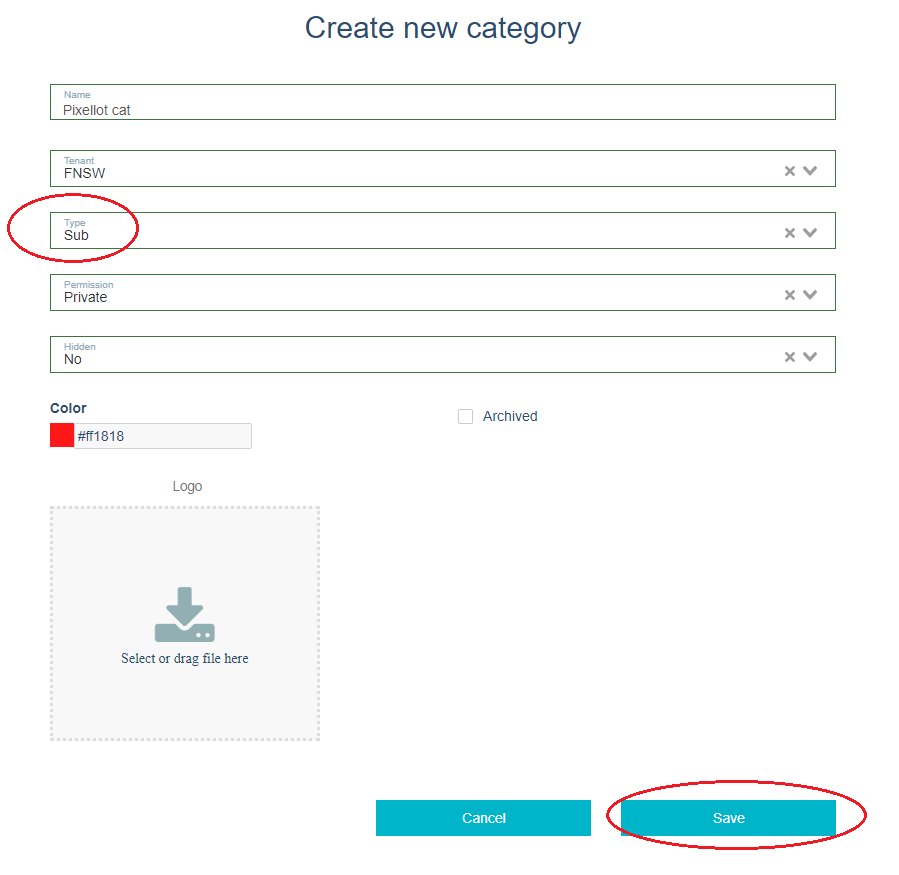

A.  Click on Create New Category icon:
B.  Add a Name, select Tenant, Type - Sub, select color and add a Logo.  Then Click on the SAVE button.


A.  To view the Category or Sub Category in OTT, go to Events, and click on Edit Event icon.


B.  Add the Category or Sub Category to the relevant VOD Events and click on SAVE.  Then it will appear in the OTT.

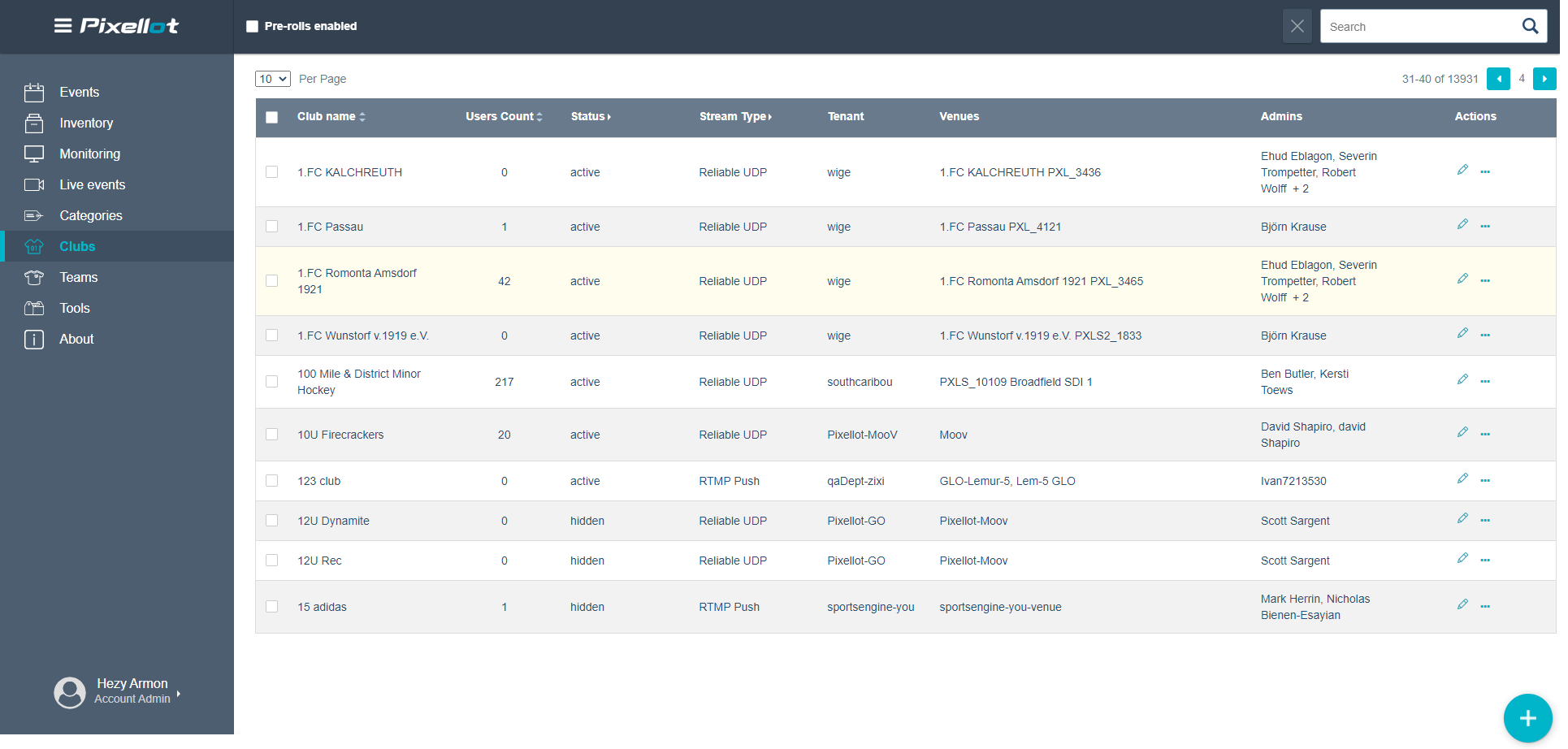

8.0  Clubs

      This section is for creating and managing Clubs.




8.1  Create Clubs

  1. Go to CLUBs, and click on Create Club icon   .

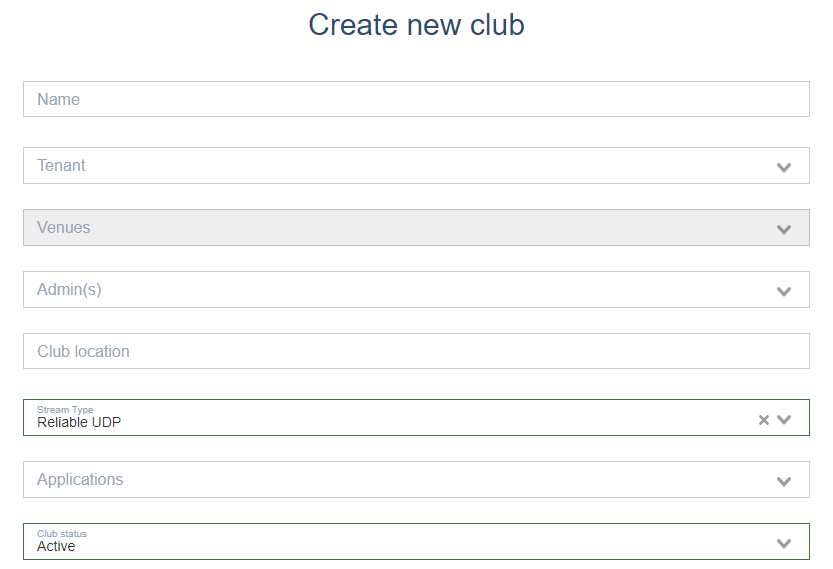

  2. You are now in the Create New Club page.   Fill in the relevant fields.
  1. Fill in Name.
  2. Select Tenant.
  3. Choose relevant Venues, multiple venues are ok.
  4. Add Admin Emails.
  5. Add Location.
  6. Select relevant Stream Type.
  7. Select relevant Application.
  8. Club Status - Active.




In ADVANCED, the first four listings are from a previous version.  New users can skip these four items.  Legacy users need to select the following:

  1. Auto approve join requests: Anyone who asks to join the Club will be approved automatically.
  2. Allow pre-rolls: Lets admin to allow pre-rolls that appear on screen before the live video begins.
  3. Allow event logos: Will enable changing Logo graphics before each event.
  4. Hide club logo on player: Will hide the Club logo from being displayed on the Video Player.
  5. Allow Highlight:  Will enable highlights to be displayed in the CMS.
  6. Allow Stream Forwarding:   Will enable streaming on an outside platform such as Facebook or Youtube.
  1. Select logos to be added.  Logos are adjustable when the Event is created.
  2. Click on SAVE and the Club is created.

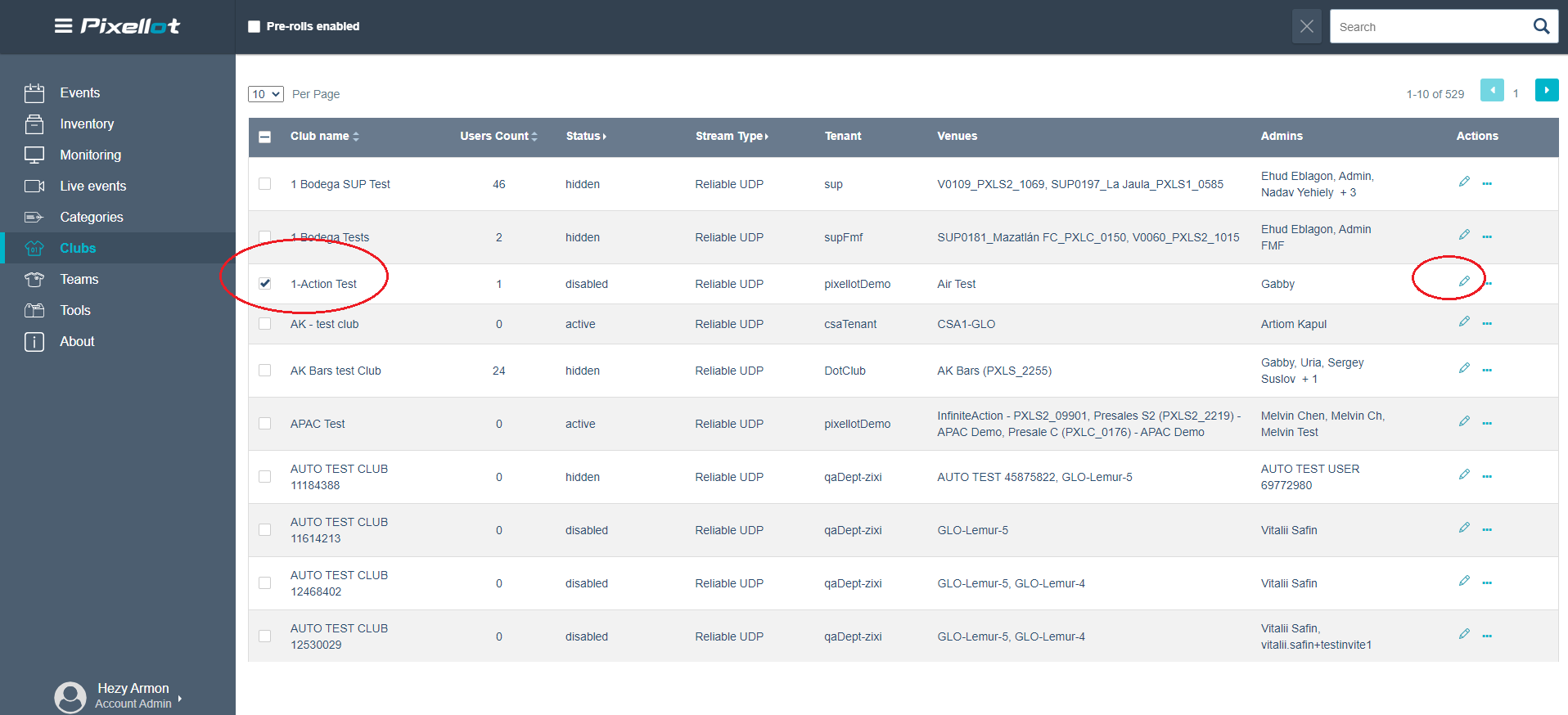

  1. Go to CLUBs, select a Club and Clock on Edit icon.




      B.   The Edit Club screen appears, and you can edit details, and then Click on SAVE when you are done.

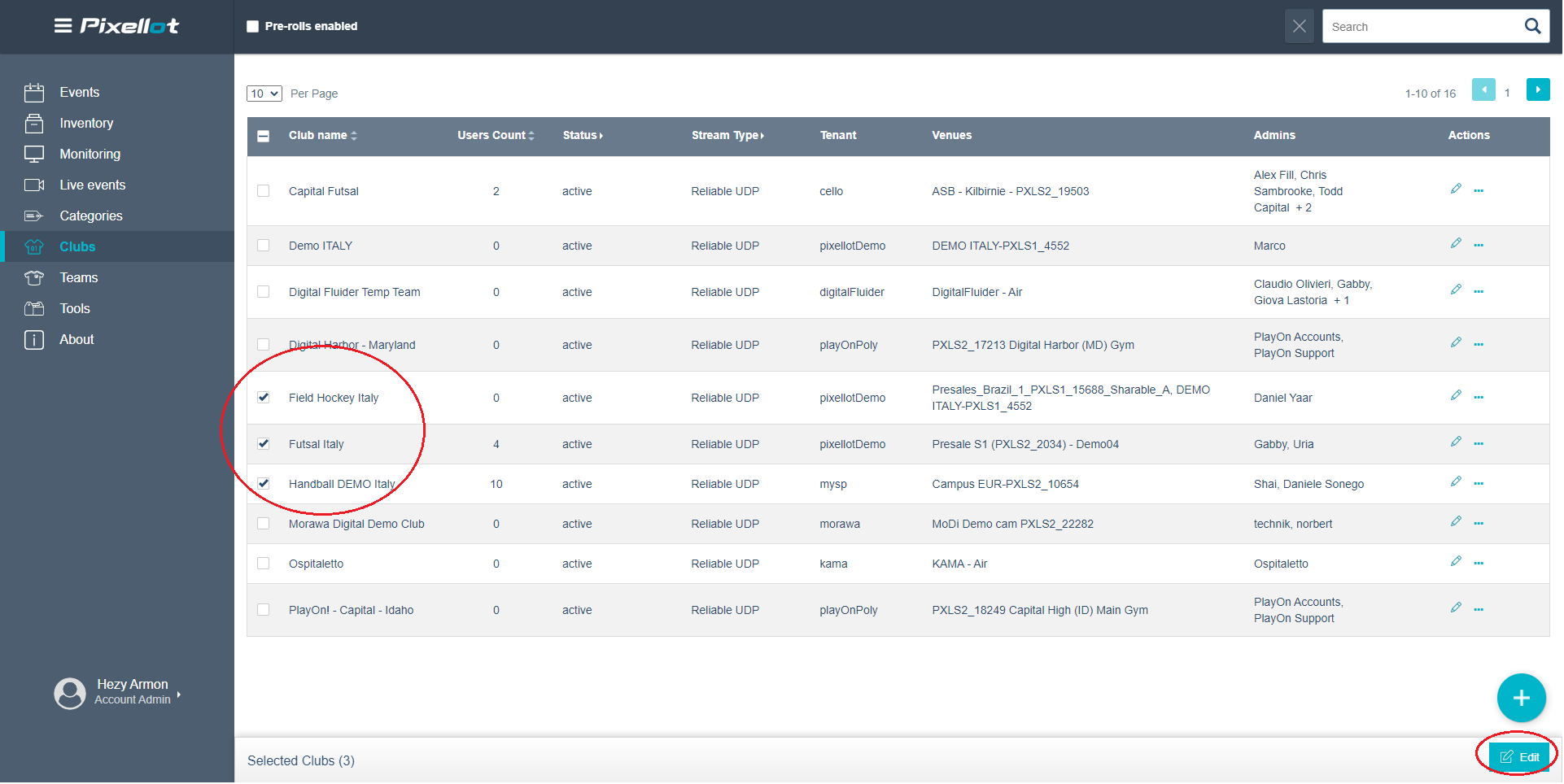

    1. To Edit Multiple Clubs, select the clubs to be edited, and click on the Multiple Edit Icon:



          B.  The Multi Edit Page will load.   Update the fields and click on SAVE to finish.

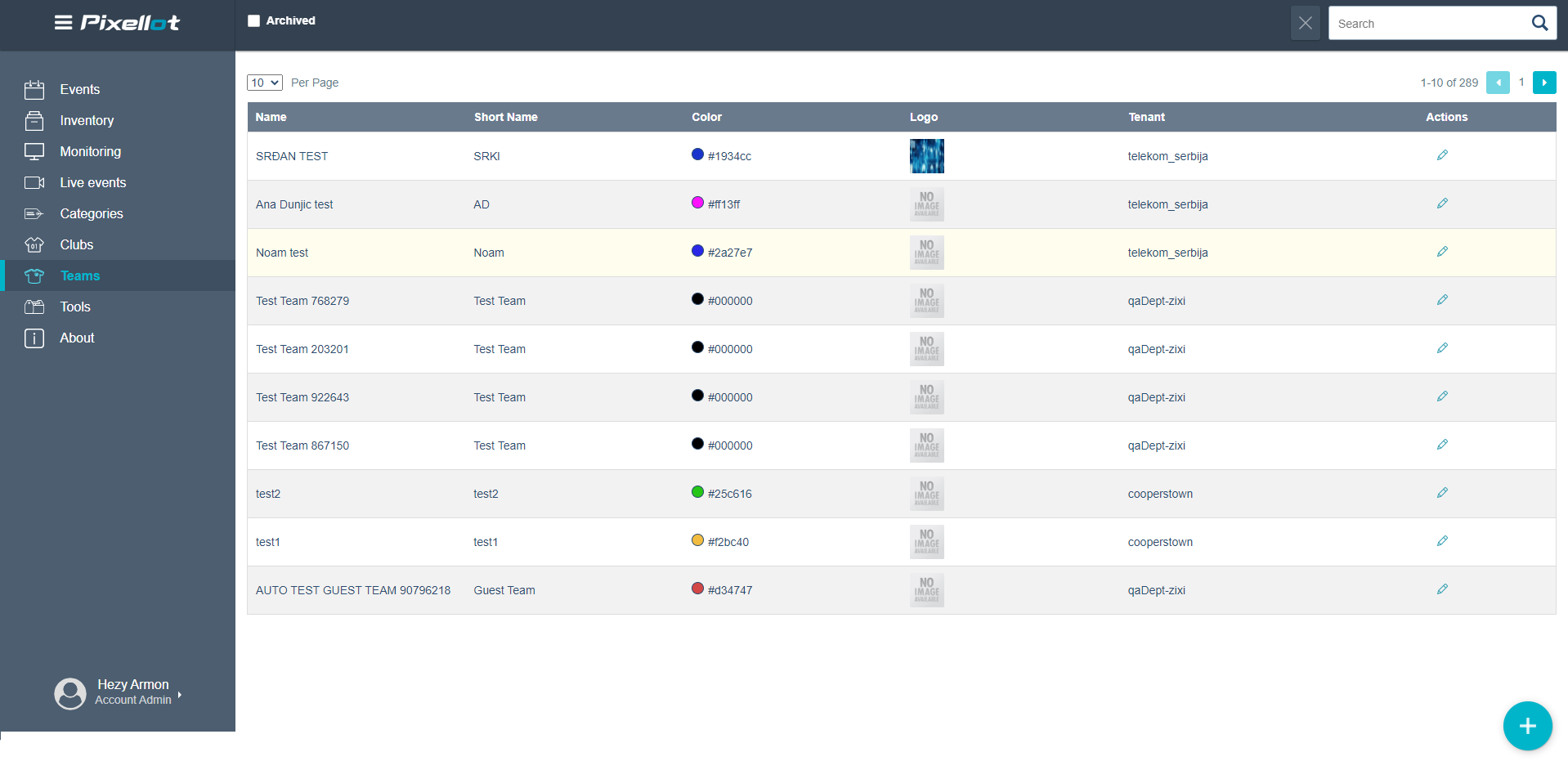

      9.0  Teams

            This section is for creating and managing Teams.   The Teams listed here appear when creating a new Event.

      A.  Click on Create New Team icon:    The following Create New Team page will appear.
      1. Add Name of Team.
      2. Add shortened version of Team Name, which will appear on the Scoreboard.
      3. Select Tenant.
      4. Pick a team color. This will be used on the Scoreboard.
      5. Add logo.  The logo will be used on the Scoreboard and other graphic elements.


      10.0  Tools

            This CMS Module has a collection of various Tools - VAST and Deep Links.



      10.1  VAST - Advertising Server

      This CMS Modules enables management of VAST Advertising Configuration:

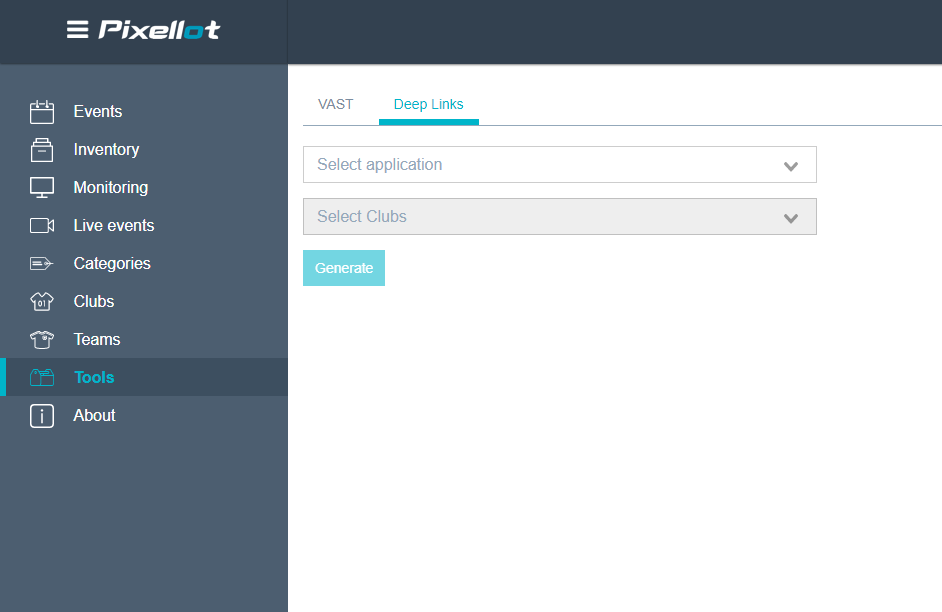

        This CMS Modules enables management of Deep Links:

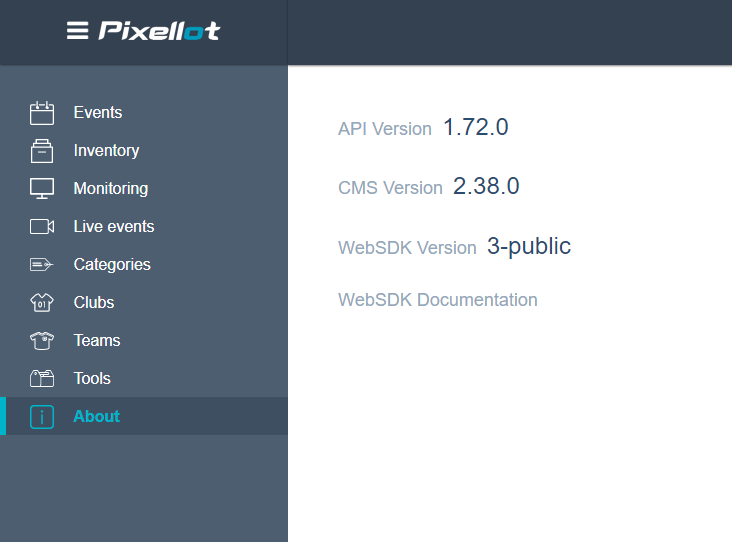

      This page lists version information for the Pixellot applications.

      There is also a link to the WebSDK Documentation.




      The CMS links to many other systems and modules.  Here is a list of activities performed from within the CMS system.

      12.1  Manual Scoreboard

                  The Manual Scoreboard page will enable you to operate:
      1. In Game Score
      2. Clock
      3. Additional Graphic Elements related to the Scoreboard

            A. Wait for the Event to become Live.

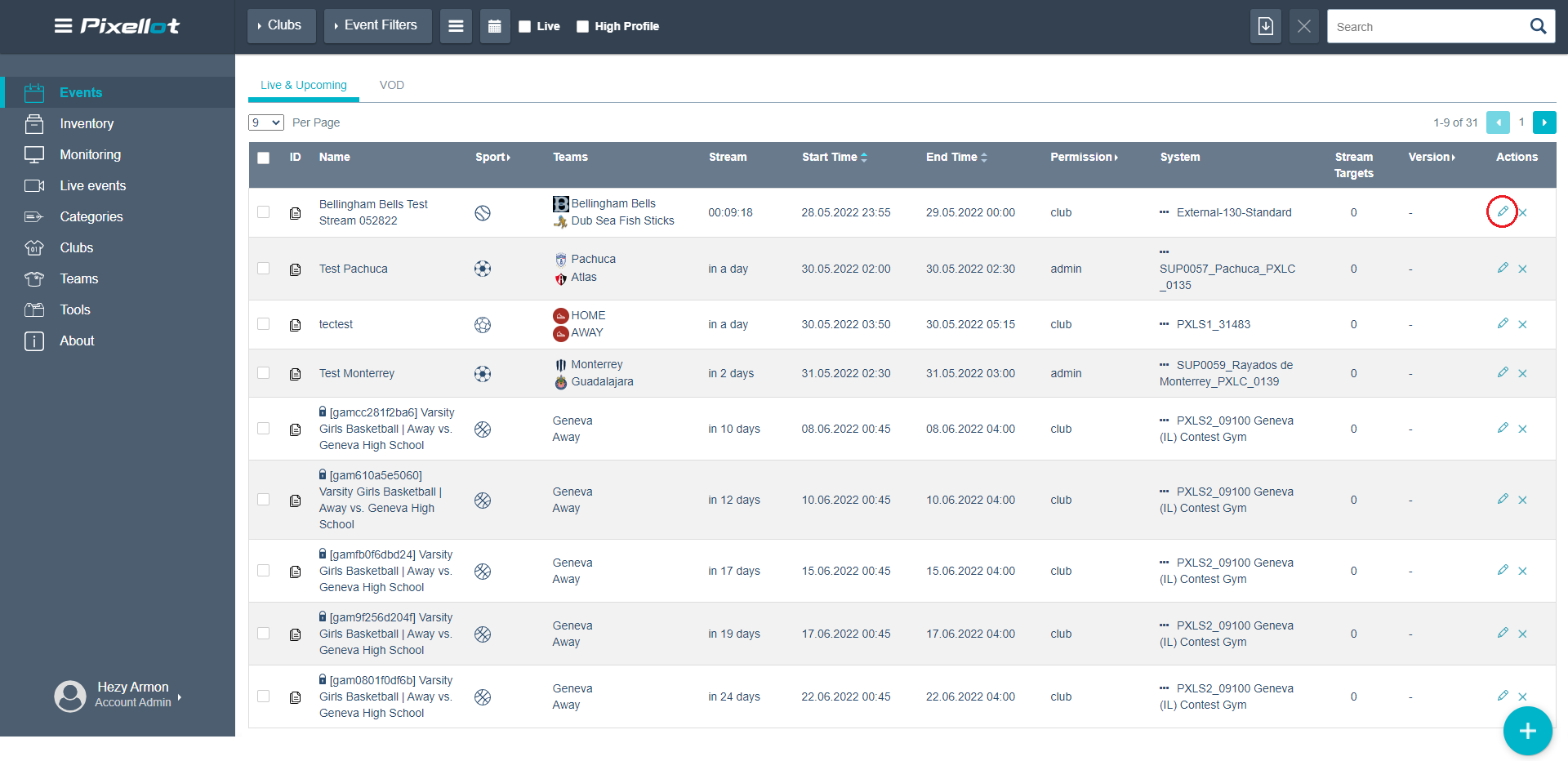

            B. Go to Events page, and select event.  Under Actions, click on the Edit  icon.



            C. Scroll down to MANUAL SCOREBOARD LINK, and click on Copy  icon to copy the Scoreboard link.




            D.  Go to Scoreboard page by pasting the link to browser.
      Once you enter the Scoreboard page, the Scoreboard graphic will appear on the Video automatically.

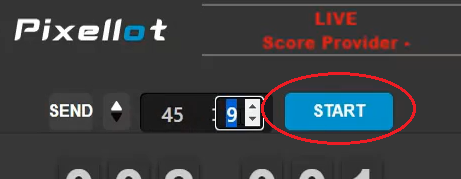

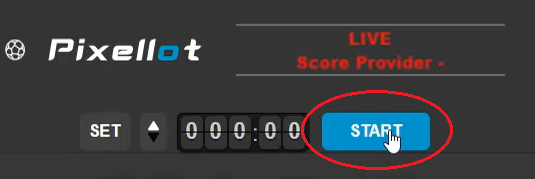

            E.  To start the Game Clock, click on START.  Make sure that the white arrow is pointing in the right direction, according to the Sport Type.

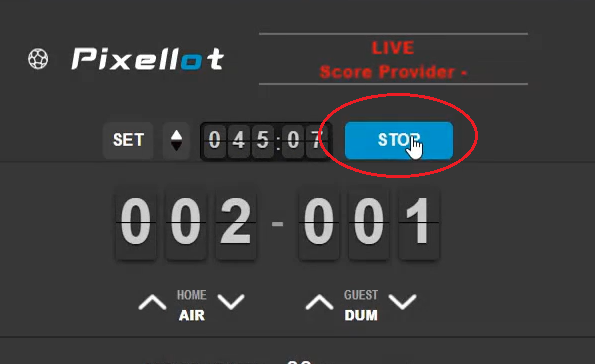

            F.  To Stop the clock, click in the STOP button.

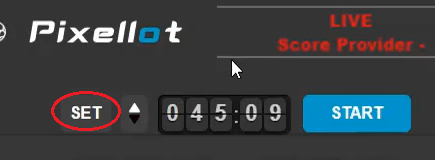

            G.  To adjust the clock manually, click SET.  Adjust the clock, and then click SEND. Click START to run the clock again.

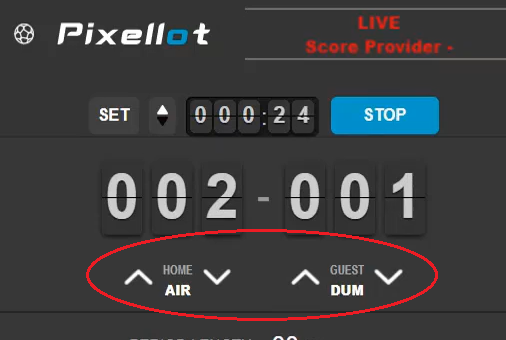

            H.  To adjust the score, click on the arrows of the relevant team.

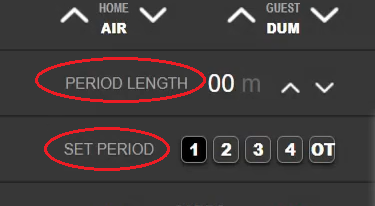

            I.  PERIOD LENGTH and SET PERIOD are currently non functional.

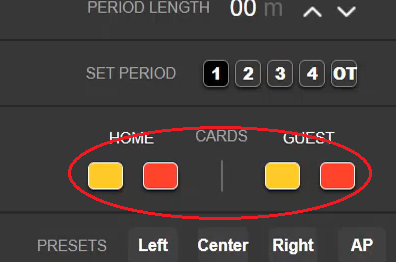

            J.  To add a Yellow or Red card, click on the Yellow or Red icon under the relevant team.  The appropriate card indicator on the Card Banner.  For Red card, the Red indicator will appear on Scoreboard.

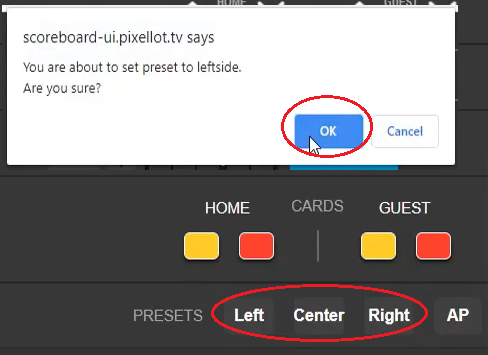

            K.  To utilize the Fixed Frame Functionality, there is a need to first Calibrate the system first.  To move to Fixed Frame, click on LEFT, CENTER or RIGHT, and then click on OK.  The camera will then point to the relevant section of the field, instead of the Pixellot AI.

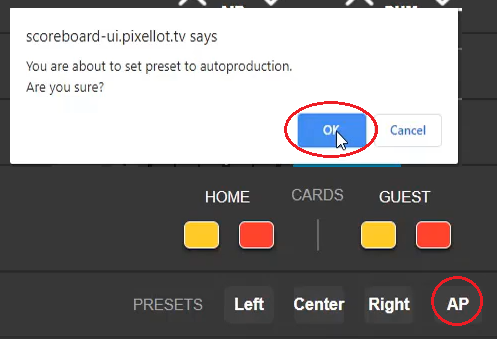

      To go back to using the AI, click on AP and then OK.



      12.2  Graphics Capabilities - Manage and Operate Graphics

                 This section will instruct how to utilize the various graphics capabilities of the system, not related to Scoreboard.

      A.  Go to Events, and click on Create New Event icon.

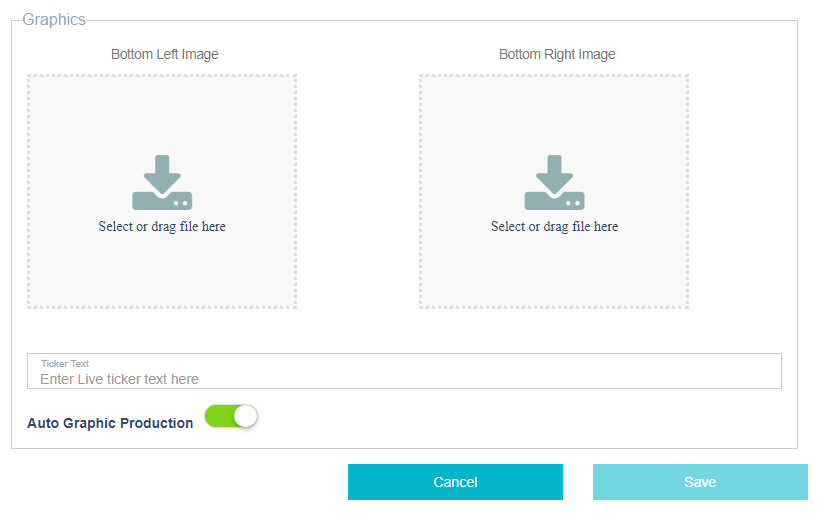

      B.  Scroll down to Graphics.  You can select images for Bottom Left, Bottom Right and Logo.  To customize position, contact your Pixellot Customer Account Manager.


            When the relevant Logo box is pressed, you will be able to upload from your PC/Laptop.
