1.1  System Features

·       Fixed Installation: Indoors or outdoors, weatherproof

·       Unmanned capture: Panoramic field capture in 8 Megapixel resolution

·       Automated production: Auto-tracking algorithms follow the flow of play and produce TV-like footage

·       Distributed to any device: Streamed in HD quality to mobile devices and web platforms

·       Personalized viewing experience: Zoom into any scene, replay, clip and share

1.2  Easy Installation

Pixellot Multi Angle Baseball is weatherproof and suitable for installation at any sports arena, both indoor and outdoor. The system is easily installed by any experienced technician who has been trained in the installation process. Some minor infrastructure preparations may be required prior to the system installation. Once installed, the system is maintenance free and can be fully programmed and managed remotely. This manual describes the procedures for installing the system at a fixed location.

For additional information and/or consultation go to https://helpdesk.pixellot.tv.

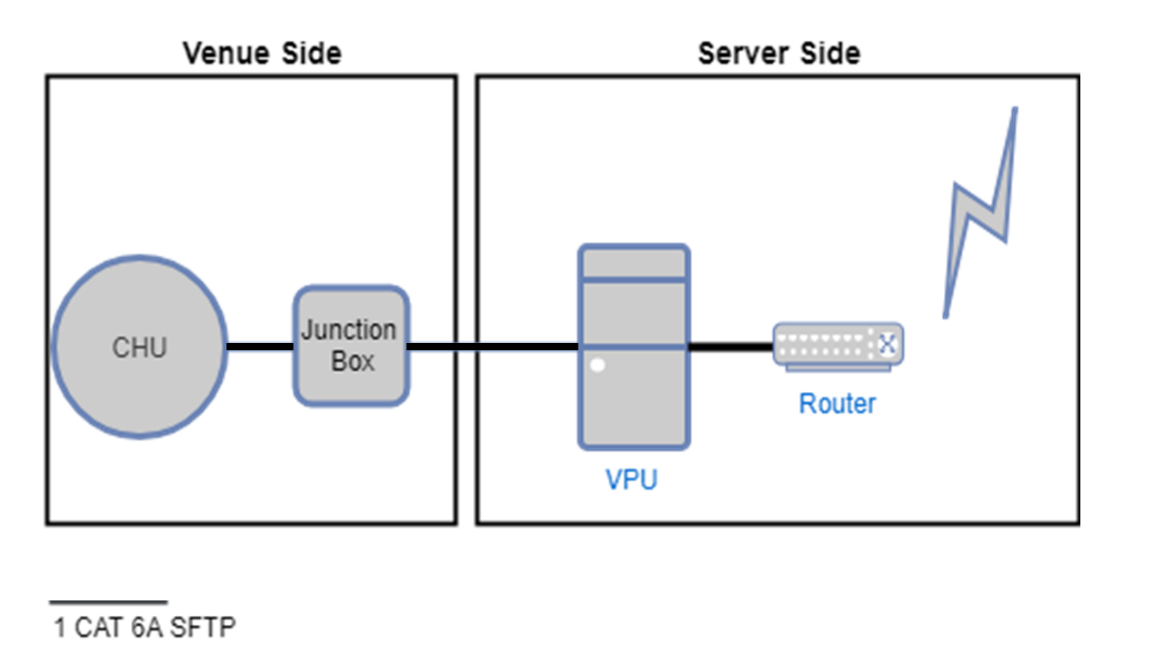

1.2.1  DoublePlay (Multi-Angle) Baseball System Schematic Diagram

The following schematic diagram shows the setup of the Multi Angle Baseball system.



2.0  Safety Instructions

3.1  Overview

The primary components of the Pixellot Multi Angle Baseball system, which must be installed at the sports venue, are the Camera Head Unit (CHU) and the Video Processing Unit (VPU).

The customer should provide the cables needed to connect the CHU to the VPU as well as all connectors and infrastructure elements needed for the cable connections.

3.1.1  Required Equipment

Make sure you have received the following:

 ·     Camera Head Unit (CHU)

·       Visual Processing unit (VPU) or Computer

3.2  Document Scope

This document describes the installation of the S2S in a baseball environment.

3.3  Main Components

3.3.1  Camera Head Unit (CHU)

The CHU is the specially designed Pixellot camera unit which captures a panoramic view of the action on the court/field. The S2S CHU consists of one wide angle camera that provides up to 180° video coverage. The alignment of the camera is adjustable, enabling you to optimize the positioning of the camera for your deployment location. The video feed is delivered to the VPU through two cables that are attached to ports on the bottom of the CHU.

1. Camera – The camera captures wide angle video at up to 8 MP resolution

2. Mics – The CHU contains two microphones to capture the ambient sound.

3. Mode Selection Pin/Mode Selection Groove – The alignment of the camera can be optimized by adjusting the Mode (i.e. the angle at which the camera is aligned). This is done by positioning the Mode Selection Pin in the proper Mode Selection Groove. (See Cable Configuration.


Choosing the Cable Route

Choose the route using the following guidelines:

·       Ensure that the cables and their conduits do not obstruct movement of players or spectators.

Measuring the Cable Length

Measure the total length of cable needed to cover the route from the CHU to the VPU and record it. If the cable length is greater than 100 m then you will need to use the Extended Range Kit. If it is greater than 200 m then you will need to use two Extended Range Kits.

Required Components

Determine how the cables will terminate (connectors, outlets) and what additional components and parts will be required.



CHU Front View



3.3.2  Video Processing Unit (VPU)

The VPU is the workstation that processes the video data that is input from the CHU.  The VPU applies Pixellot's patented AI auto-tracking algorithms to produce a professional quality broadcast of the sports event for cloud-based distribution to mobile devices and web platforms. The VPU is set up in a secure location at the sports venue, where it is connected by two ethernet cables to the CHU. During the installation process, you will need to connect a monitor, keyboard and mouse to the VPU to set up the initial configuration and internet connection.

 ·       AC Power – an AC power adapter plugs into a standard AC outlet.

·       Ethernet Ports – can be used to connect to the Internet.

·       USB3 Ports – The USB cable from the Audio Interface is connected to a USB3 port on the VPU.

·       PoE Ports – the Cat6a STP cables from the CHU connect to these four ports, receiving video input and providing power to the CHU.



4.0  Installing the Camera

4.1  Installing the CHU

4.1.1  Configuring the CHU Junction Box

1.      Use the four holes to on the base to attach the mounting screws directly onto a wall.

2.      Alternatively, you can install the CHU onto a pole using steel bands.

3.      Release the bands and thread them through the mount holes.

4.      Circle the pole with the bands and tighten until the mount is secured to the pole.

The CHU is now attached in place.

5.0  Installing the S2S

1.      Download the Pixellot Connect app.

3.      If you encounter any issues or have any questions contact Pixellot support at: helpdesk.pixellot.tv
