LIGR

LIGR


About Pixellot

Pixellot offers automated sports production solutions that provide affordable alternatives to traditional video capture, production, and distribution systems for professional and semi-professional sports events. Founded in 2013, Pixellot’s AI technology solution streamlines production workflow by deploying an unmanned multicamera system in a fixed location, with additional angles as required, to cover the entire field, offering a stitched panoramic image. Advanced algorithms enable automatic coverage of the flow of play and generate highlights. Pixellot systems are deployed by broadcasters, production companies, clubs, federations, universities, high schools, sports portals, and coaching solution providers around the globe.

For more information visit: www.pixellot.tv


Legal Notice

This document contains proprietary and confidential material of Pixellot Ltd. Any unauthorized reproduction, use, or disclosure of this material, or any part thereof, is strictly prohibited. This document is solely for the use of Pixellot employees and authorized Pixellot customers.

The material furnished in this document is believed to be accurate and reliable. However, no responsibility is assumed by Pixellot Ltd. for the use of this document or any material included herein. Pixellot Ltd. reserves the right to make changes to this document or any material included herein at any time and without notice.

For more information visit: www.pixellot.tv

Copyright © 2022 Pixellot Ltd.

All Rights Reserved.




1.0  About LIGR

LIGR enables professional graphics overlay embedded onto the live Pixellot Video Stream – turning any event into professional TV quality event, on a bare bones budget.

1.1. Supported Pixellot Products


Show and Prime.

1.2. LIGR Provides Advanced Graphics Solutions:


• MarketPlace (Pixellot is a robust platform for external integration with other Audio, Video, Automation and Advertising solutions).
• Manual Scoreboard and Advanced Graphics
• LIGR Overlay Appears on Betting Feed
• OnBoarding

1.3. General Notes


1.3.1. Account:


To use LIGR, the client needs an Account in the LIGR system.

1.3.2. Preparation:


Prior to Event, the Client User needs to prepare and upload graphics for the LIGR Video Embedded Overlay.  These graphics include:
A. Team Logos: Graphics for team logos.
B. Banners
C. Advertisements
D. ETC….

1.3.3. Latency


Integration of LIGR graphics has no impact on Latency of the Video Feed, so it is integrated into the Video Feed for Betting clients.


2.0 Setting up LIGR in Pixellot CMS:


To enable LIGR for a Client, the LIGR needs to be enabled in Pixellot CMS on the Account level and then for each Club and then for each Event.

2.1. Enable LIGR for a Client/Club in CMS:

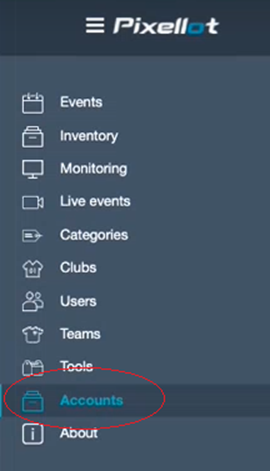

2.1.1. Select ACCOUNTS in Main CMS Menu:

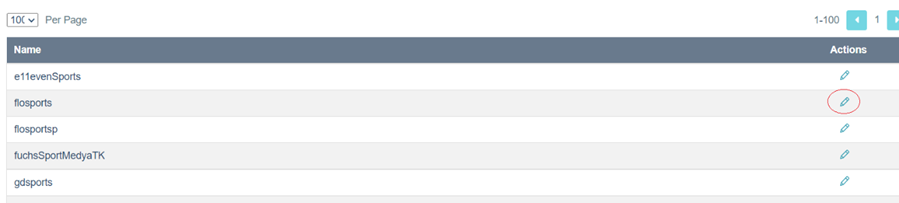

2.1.2. Select ACCOUNTS in Main CMS Menu, and click on the Edit Icon:




2.1.3. Select GET on LIGR option and hit SAVE:

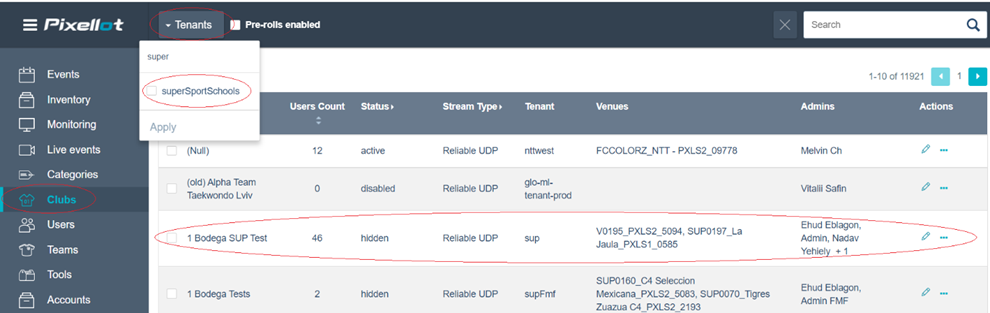

2.1.4. Enabling LIGR for Club:


A. Select CLUBS in Pixellot CMS
B. Search for relevant CLUB
C. Hit Edit Icon


- Select ALLOW WORKING WITH VAS PROVIDERS and hit SAVE.



2.2. Enable LIGR for an Event:

(Note: it is recommended to define LIGR Event at least 20 minutes prior to Event):

A. Select EVENTS from Pixellot CMS
B. Select the relevant Club and add new Event.

 
C. Edit the fields.
D. Add LIGR in VAS Providers.


E. Click SAVE.
F. This Event was now automatically added to the LIGR platform.
G. Note: It is possible to add LIGR as long as the Event has not yet commenced.



2.3. Implementing LIGR for an Event:


To understand the LIGR functionality and operation, enter LIGR’s documentation:  https://offers.ligrsystems.com/ligr-and-pixellot


A. Select OverlayProvider.  This will open an accordion list.
B. The first link is the Manual Scoreboard Link.
C. The Second link is the Graphics Overlay Link.  This will be the graphic layer on top of the Pixellot Video Stream.


2.3.2. Manual Scoreboard in LIGR:

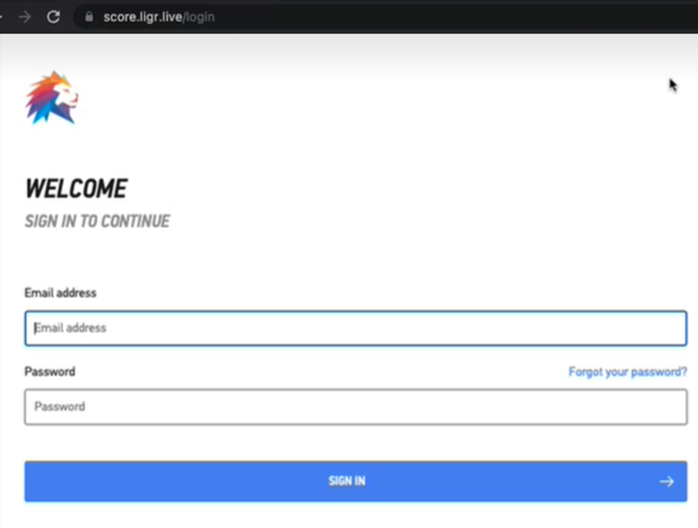

A. Login into LIGR – (note:  Client must have account in LIGR system):

- LIGR Login URL: Copy first link under OverlayProvider Accordion.

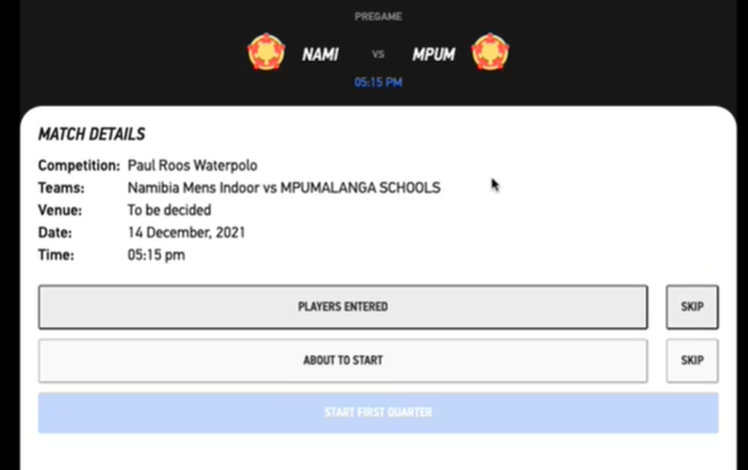

- After Login the following Manual Scoreboard Interface appears:  (note: The teams are identical to the teams in the Event in the Pixellot CMS.)
