The primary components of the Pixellot CricketTV system, which must be installed at the sports venue, are the Camera Head Unit (CHU) and the Video Processing Unit (VPU).

The customer should provide the cables needed to connect the CHU to the VPU as well as all connectors and infrastructure elements needed for the cable connections.

3.1.1 Required Equipment

Make sure you have received the following:

 ·     Camera Head Unit (CHU)

·       Visual Processing unit (VPU) or Computer

3.2  Document Scope

This document describes the installation of the S2S units in a CricketTV environment.

3.3 Main Components

3.3.1  Camera Head Unit (CHU)

The CHU is the specially designed Pixellot camera unit which captures a panoramic view of the action on the court/field. The S2S CHU consists of a wide angle camera which provides up to 180° video coverage. The alignment of the cameras is adjustable, enabling you to optimize the positioning of the camera for your deployment location. The video feed is delivered to the VPU through two cables that are attached to ports on the bottom of the CHU.

1. Camera – The camera captures wide angle video at up to 8 MP resolution

2. Mics – The CHU contains two microphones to capture the ambient sound.

3. Mode Selection Pin/Mode Selection Groove – The alignment of the camera can be optimized by adjusting the Mode (i.e. the angle at which the camera is aligned). This is done by positioning the Mode Selection Pin in the proper Mode Selection Groove. (See Cable Configuration.


Choosing the Cable Route

Choose the route using the following guidelines:

·       Ensure that the cables and their conduits do not obstruct movement of players or spectators.

Measuring the Cable Length

Measure the total length of cable needed to cover the route from the CHU to the VPU and record it. If the cable length is greater than 100 m then you will need to use the Extended Range Kit. If it is greater than 200 m then you will need to use two Extended Range Kits.

Required Components

Determine how the cables will terminate (connectors, outlets) and what additional components and parts will be required.

For outdoor installation, heavy duty outdoor cables should be used.

CHU Front View

3.3.2  Video Processing Unit (VPU)

The VPU is the workstation that processes the video data that is input from the CHU. The VPU applies Pixellot's patented AI auto-tracking algorithms to produce a professional quality broadcast of the sports event for cloud-based distribution to mobile devices and web platforms. The VPU is set up in a secure location at the sports venue, where it is connected by two ethernet cables to the CHU. During the installation process, you will need to connect a monitor, keyboard and mouse to the VPU to set up the initial configuration and internet connection.

 ·       AC Power – an AC power adapter plugs into a standard AC outlet.

·       Ethernet Ports – can be used to connect to the Internet.

·       USB3 Ports – The USB cable from the Audio Interface is connected to a USB3 port on the VPU.

·       PoE Ports – the Cat6a STP cables from the CHU connect to these four ports, receiving video input and providing power to the CHU.

4.0 Installing the Camera

4.1  Installing the CHU

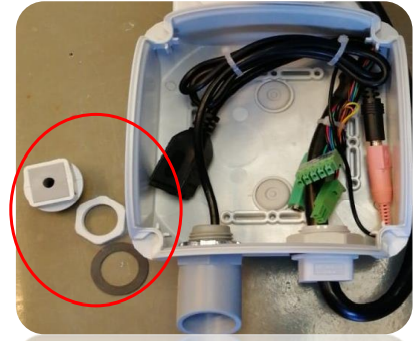

4.1.1  Configuring the CHU Junction Box

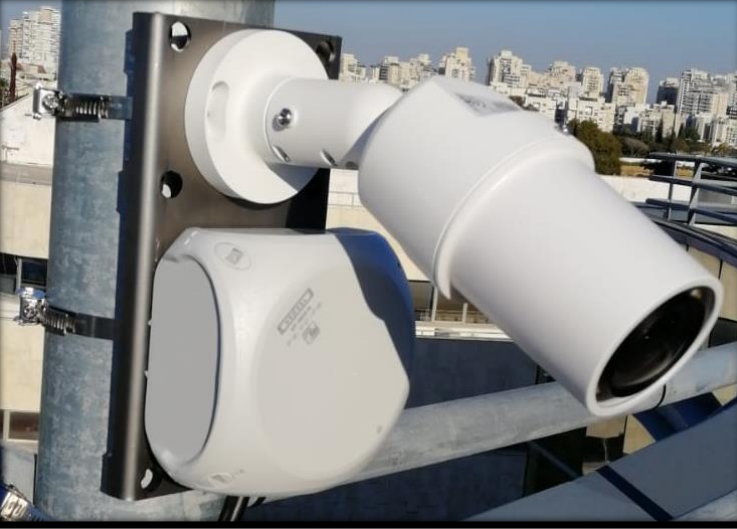

The CHU base is used as a mount for attaching the CHU on a wall or a pole.

1.      Use the four holes to on the base to attach the mounting screws directly onto a wall.

2.      Alternatively, you can install the CHU onto a pole using steel bands.

3.      Release the bands and thread them through the mount holes.

4.      Circle the pole with the bands and tighten until the mount is secured to the pole.

The CHU is now attached in place.

4.1.3  Installing the Cables

Two Cat7a STP cables are used to connect the CHU to the VPU. They must be installed along the entire path from the CHU to the VPU and connected using the appropriate connectors. You will use the same items that were used in the PRE-INSTALLATION CHECK, but you will now attach the cables in their permanent positions.

If you will be using direct scoreboard integration using the Integrated Scoreboard Kit then you will also need to pass a cable from the scoreboard or scoreboard controller to the VPU. If you are using an OCR Scoreboard Kit then you will need to pass a cable from the Scoreboard Camera to the VPU.

  All infrastructure installation should be done by a trained technician.

Step 1 – Preparing the cable path

Starting from the CHU side prepare a path by which the cables can pass from the CHU to the VPU. It is recommended to prepare a conduit through which the cables can pass along the entire route.

For outdoor installation the cables should pass through a waterproof protective conduit or tubing.

Prepare the route using the following guidelines:

• Ensure that the cables and their conduits do not obstruct movement of players or spectators.

• If the cables run along the floor/ground, make sure that they are below ground or flush with the ground so that they don't pose a tripping hazard.

Step 2 – Installing junction boxes and Repeater Units

• If you are using a junction box/s (required for outdoor installation) use the following procedure:

1. Attach the junction box to a pole or wall within 2 meters of the CHU.

2. If you are using repeater units (required for long range installation), install a junction box housing the repeater units at intervals of no more than 100 m (328' 1").

Step 3 – Installing the cables

Once the path has been prepared, install the cables along the entire path form the CHU to the VPU, being careful not to damage the cables. Make sure that the cables are secured in place along the entire route.

Don't connect the cables to the CHU and VPU until they have been tested.

Step 4 – Re-testing the cables

Once the full route of the cables is set up and attached along the entire route. Re-test each of  the cables to make sure that none of the wires were damaged during the installation. This is done using a cable testing device (e.g. Fluke Cable device).

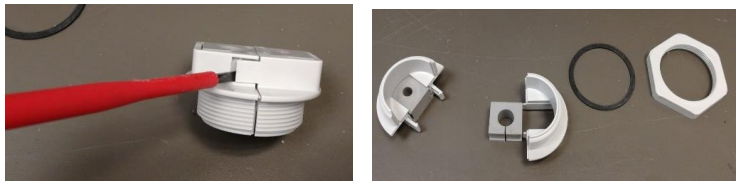

Step 5 – Attaching the bayonet casings to the cables

Attach the bayonet connector casings to the male connector on the end of each of the jumper cables that will connect to the CHU.

The female side of the bayonet connectors come pre-installed on the CHU.

To assemble the bayonet connector casings:

1. Remove all parts from the plastic bag and lay them out on a clean work surface.





2. Make sure that the RJ45 male connectors don't have any protruding moldings (aside from the connector pins) as this will interfere with the insertion of the cable into the bayonet casings.



3. If the connectors do have a protruding molding, you may be able to strip it with a utility knife. Otherwise, the connector will need to be replaced.



4. Attach all washers and casing parts to the cable in the order shown below (as shown in the instructions included in the bayonet connectors package).



5. Push the end of the connector through the bayonet casing with the pin aligned with the channel in the casing. Push it through fully until you hear a 'click'.



  If the cable is not properly inserted into the bayonet casing then the connection with the CHU will not be effective.

6. Perform the identical procedure on the second cable.

  Don't attach the cables to the CHU until the CHU has been mounted in it's final position.



1.      Download the Pixellot Connect app.

QR Code for Downloading Pixellot Connect App:

Another method of installing the Pixellot Connect App, on a mobile device, is to download and install the app from the App Stores.

For Android version: Click Here.

For IOS (Apple) version: Click Here.

2.      Follow the instructions to complete the installation.

3.      If you encounter any issues or have any questions contact Pixellot support at: helpdesk.pixellot.tv
