2.0  Package Contents

1. NanoStation

2. Cable Tie

3. PoE Adapter (24V, 0.5A)

4. Power Cord


3.0  Installation Requirements

Shielded Category 5 (or above) cabling with drain wire

should be used for all wired Ethernet connections and

should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from

harmful outdoor environments and destructive ESD events

with industrial‑grade, shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

Surge protection should be used for all outdoor installations.

We recommend that you use two Ethernet Surge Protectors,

model ETH-SP, one near the NanoStation and the other

at the entry point to the building. The ETH-SP will absorb

power surges and safely discharge them into the ground.

4.0  Hardware Overview

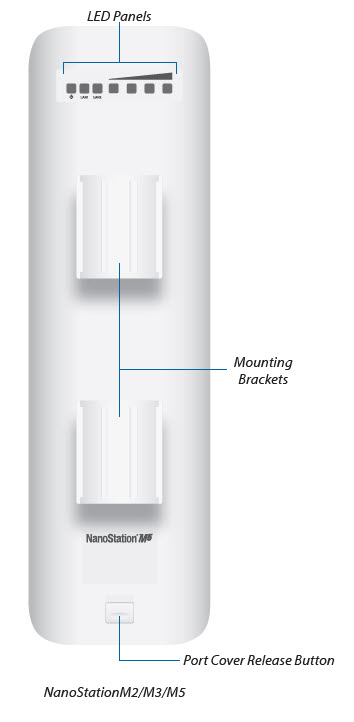

4.1  Back View

4.2  LED Panel

	Power - The power LED will light green when the device is connected to a power source.
LAN1	Main Ethernet - The LED will light steady green when an active ethernet connection is made to the Main/LAN port and will flash when there is activity.
LAN2	Secondary Ethernet - (NanoStation M2/M3/M5/5AC). The LED will light steady green when an active Ethernet connection is made to the Secondary port and will flash when there is activity.
Signal	In airOS®, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds. The default values are shown below:

	LED will light red when the wireless signal strength is above -94 dBm.
	LED will light amber when the wireless signal strength is above -80 dBm.
	LED will light green when the wireless signal strength is above -73 dBm.
	LED will light green when the wireless signal strength is above -65 dBm.

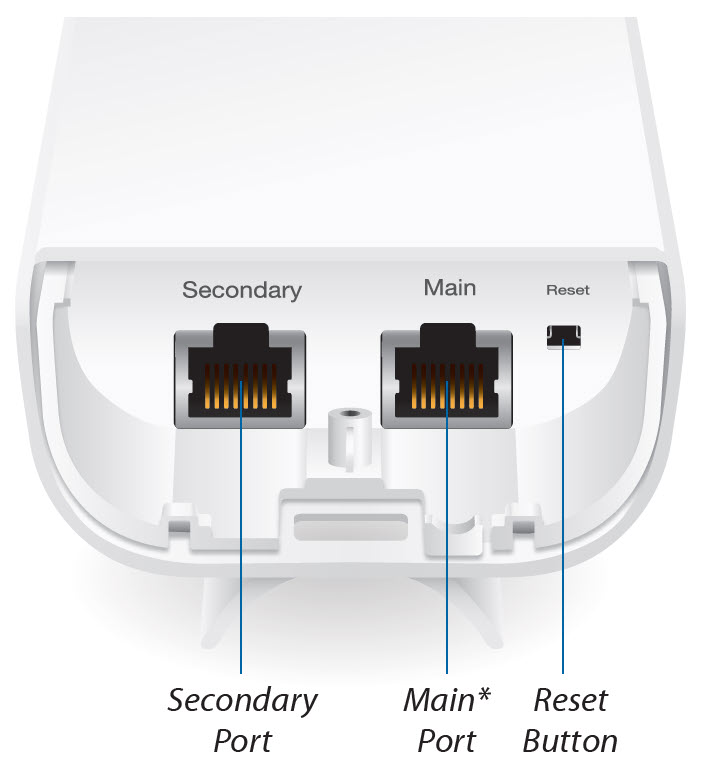

4.3  Ports

Main/LAN - 10/100 Ethernet port used to connect the power

and should be connected to the LAN and DHCP server.

Secondary - (NanoStation M2/M3/M5/5AC only) 10/100 Ethernet

port used for bridging and supports software-configurable

PoE passthrough.

In order to use PoE passthrough on the Secondary

port, a 24V, 1A PoE adapter is required.

Reset Button - To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the NanoStation

is powered on. Alternatively, a remote reset button is located

on the bottom of the PoE Adapter.

5.0  Hardware Installation

1. Press the Port Cover Release Button located on the back of the NanoStation and slide the cover off.


2. Connect an Ethernet cable to the Main/LAN port.

3. Replace the port cover.

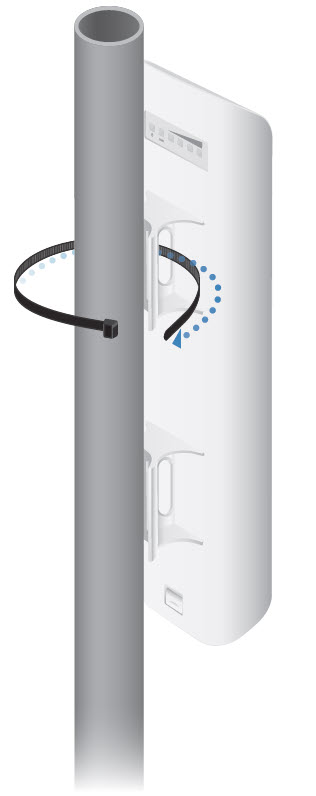

4. Position the NanoStation at the desired location on a pole and insert a cable tie into the slot of the mounting bracket.

5. Align the front of the NanoStation toward the other end of the wireless link. Then tighten the Cable Tie around the pole.

   For the NanoStationM2/M3/M5/5AC , two Cable Ties are provided. Fasten the second Cable Tie to the other mounting bracket for added security.

6.0  Connecting Power

Connect the power using one of the following options:

1. Using the included Gigabit PoE Adapter: See Connecting to the PoE Adapter.

2. Using a separate PoE switch: Connect the Ethernet cable from the device’s Ethernet port to a PoE-enabled Ethernet port on the switch.


The switch port must comply with the power specifications listed in the Specifications section of this Quick Start Guide.

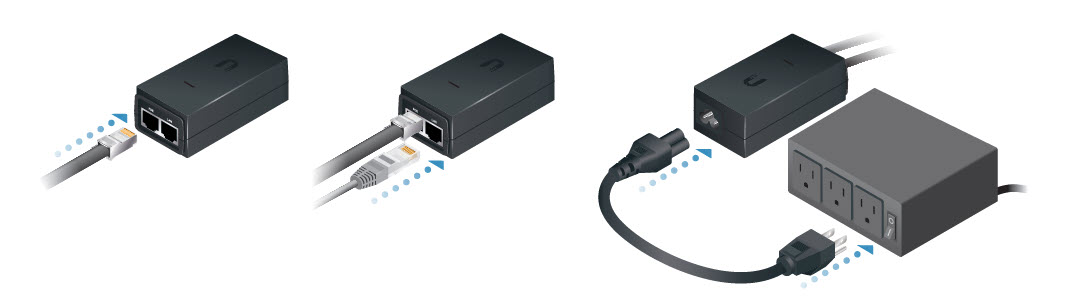

6.1  Connecting to the PoE Adapter

1. Connect the Ethernet cable from the device to the POE port of the PoE adapter.

2. Connect the Ethernet cable from your LAN to the LAN port of the PoE adapter.

3. Connect the power cord to the adapter's power port.
   Connect the end of the power cord to a power outlet.


6.2  Mounting the PoE Adapter

1. Remove the PoE Mounting Bracket form the adapter, place the bracket at the desired location, and mark the two holes.

2. Pre-drill the holes if necessary, and secure the bracket using the two fasteners (not included).

3. Align the adapter's slots with the tabs of the PoE Mounting Bracket, and then slide the adapter down.



6.3  Accessing the Subnet

Use IPV4 Protocol

1. Ensure that your host system is connected via ethernet to the NanoStation.

2. Configure the ethernet adapter on your host system.

3. Subnet should be 255.255.0.0

4. The IP is 169-254

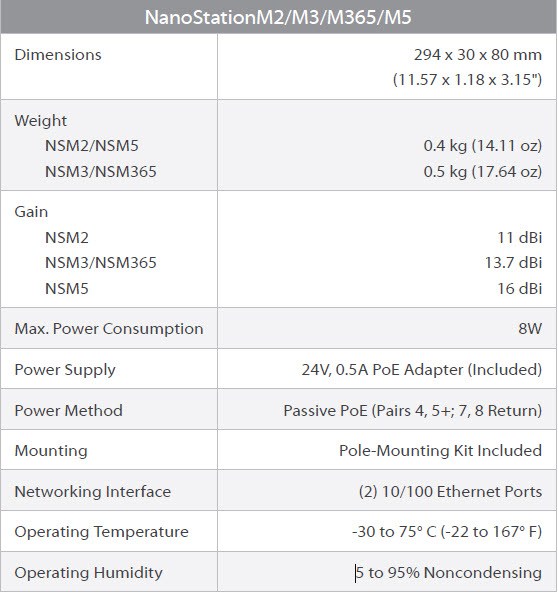

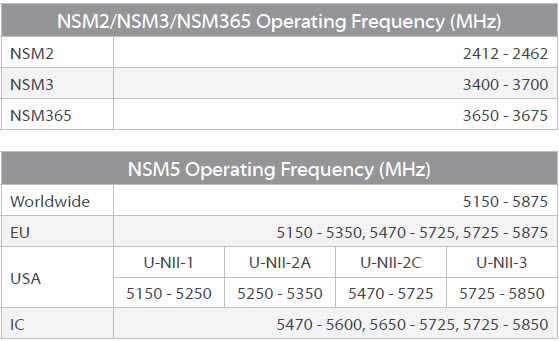

6.4  Specifications

7.0  Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specified by the manufacturer.


Do not use this product in a location that can  be submerged by water.

Avoid using this product during an electrical  storm. There may be a remote risk of electric shock from  lightning.

7.1  Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current

requirements indicated on the manufacturer’s label. Connection to a

different power source than those specified may result in improper

operation, damage to the equipment or pose a fire hazard if the

limitations are not followed.

2. There are no operator serviceable parts inside this equipment. Service

should be provided only by a qualified service technician.

3. This equipment is provided with a detachable power cord which has

an integral safety ground wire intended for connection to a grounded

safety outlet.

a. Do not substitute the power cord with one that is not the provided

approved type. Never use an adapter plug to connect to a 2-wire

outlet as this will defeat the continuity of the grounding wire.

b. The equipment requires the use of the ground wire as a part of the

safety certification, modification or misuse can provide a shock

hazard that can result in serious injury or death.

c. Contact a qualified electrician or the manufacturer if there

are questions about the installation prior to connecting the

equipment.

d. Protective earthing is provided by Listed AC adapter. Building

installation shall provide appropriate short-circuit backup

protection.

e. Protective bonding must be installed in accordance with local

national wiring rules and regulations.

8.0  P2P (Point to Point)

8.1  P2P Kit includes:

1. 1 x NSM2 + 1 x POE Injector (passive) (NSM2 box contains both the access point and the POE injector)

2. 1 x NSM2 (no need for the POE injector although it is coming by default in the box)
3. 1 x INS-3AF-O-G = POE transmitter
4. 1 x UCY POE injector
5. 4 x 2m Ethernet cable
6. 2 x Mickey Mouse cables (this is the only Local item, we will need to change according to the customer)


8.2  P2P (Point to Point) Logic Flow
