Pixellot offers automated sports production solutions that provide affordable alternatives to traditional video capture, production, and distribution systems for professional and semi-professional sports events. Founded in 2013, Pixellot’s AI technology solution streamlines production workflow by deploying an unmanned multicamera system in a fixed location, with additional angles as required, to cover the entire field, offering a stitched panoramic image. Advanced algorithms enable automatic coverage of the flow of play and generate highlights. Pixellot systems are deployed by broadcasters, production companies, clubs, federations, universities, high schools, sports portals, and coaching solution providers around the globe.

For more information visit: www.pixellot.tv

3.0  System Components

1. 2 AAs (Additional Angle Cameras) (S5SD-G)
2. 2 Housing for AA
3. 2 Mounting Arms, with Mounting  Bases (for wall or pole)

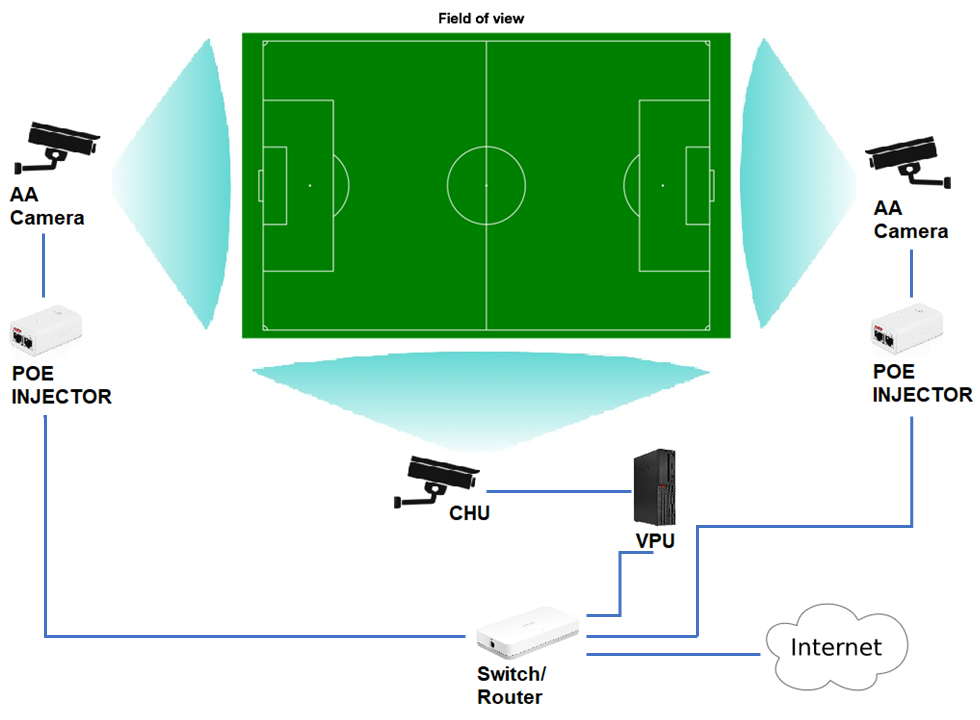

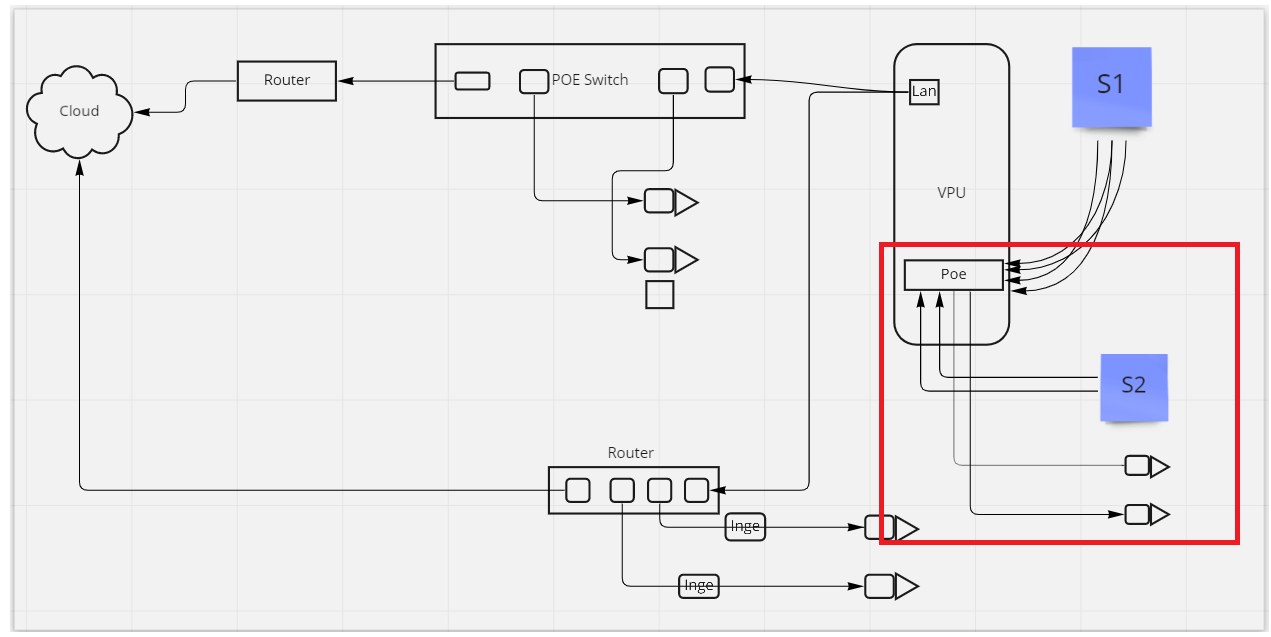

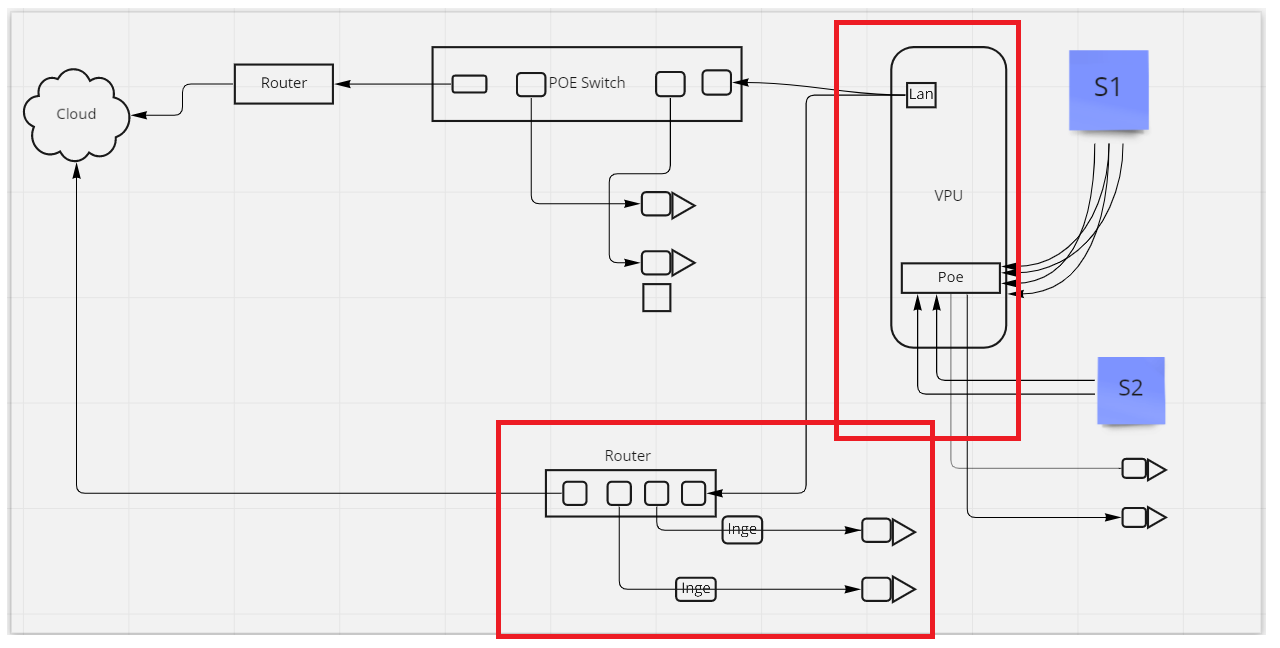

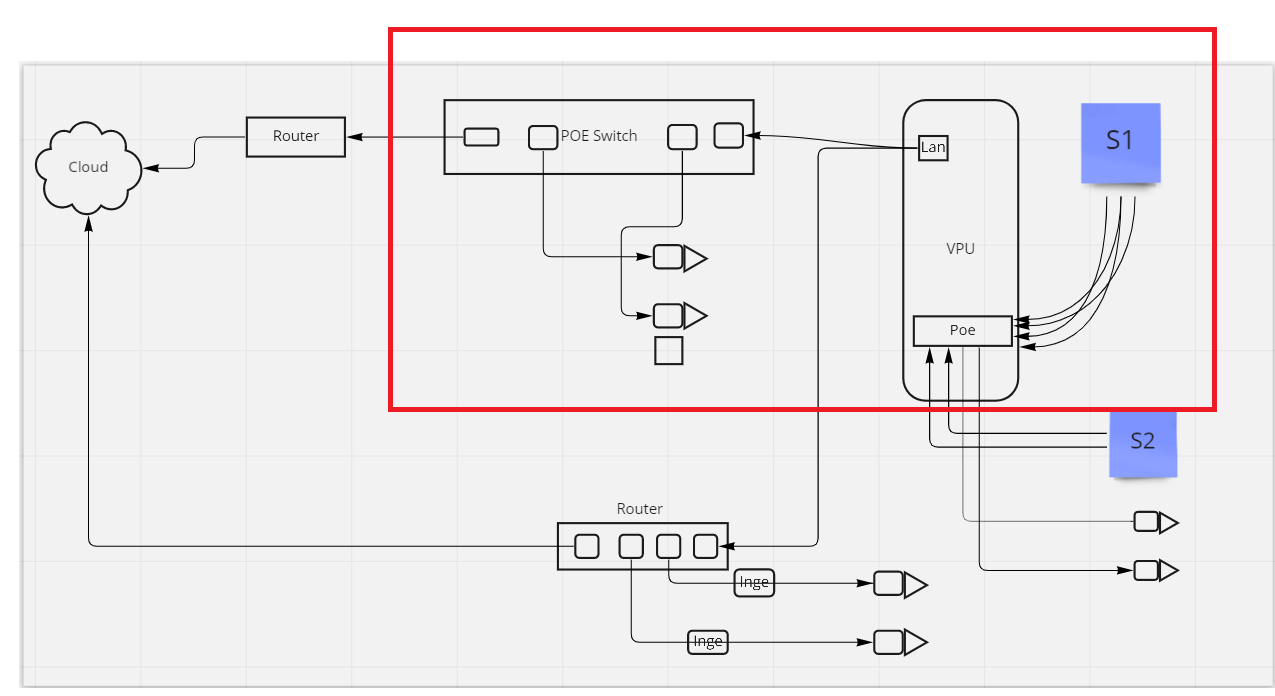

4. 1 Router (optional) - (Note: See schematic to see if required.)

5. 1 POE Injector (optional) - (Note: See schematic to see if required.)

6. 1 Router POE (optional)  - (Note: See schematic to see if required.)

Note:  POA is required in order to power up AA.

Specifications

3.3.4  Cabling

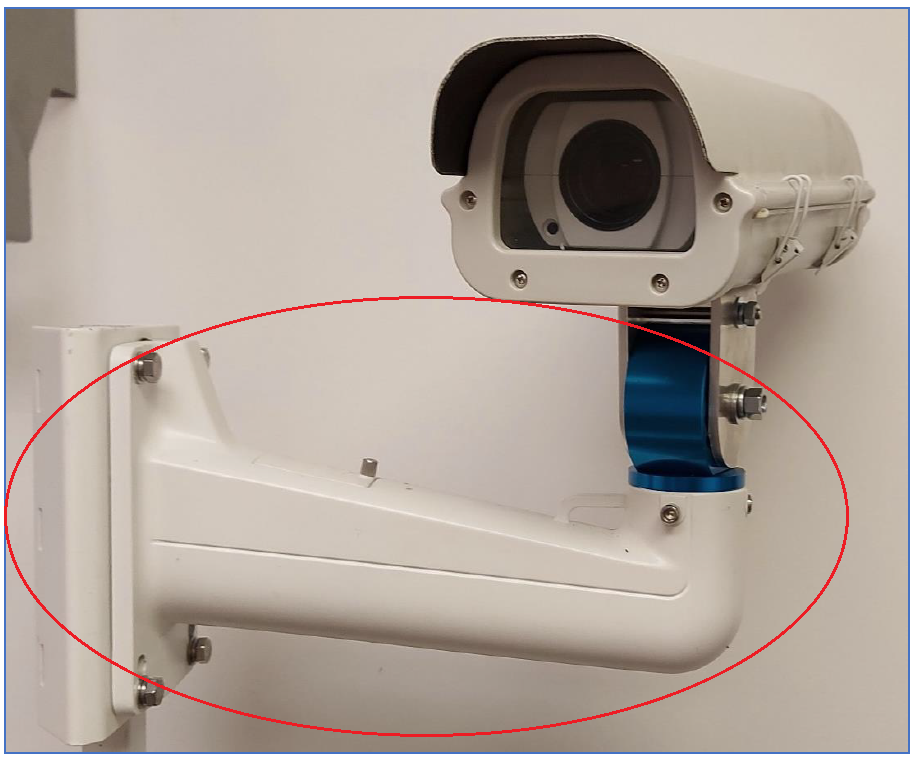

      4.1.1  Mounting AA (Additional Angle) Camera:

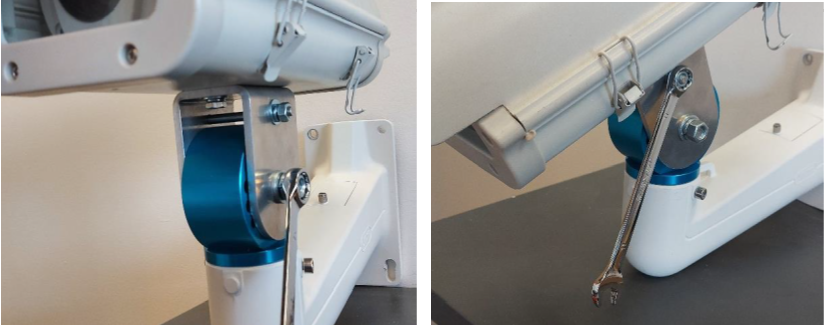

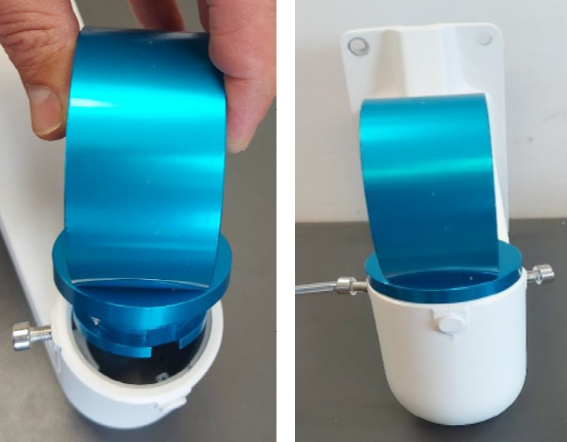

2.  Place the blue mounting bracket onto the mount’s arm, adjust the pan, and tighten the screws on both sides.

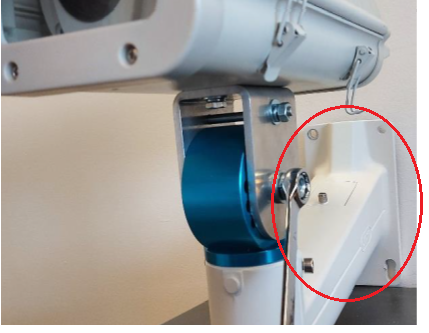

3.  Secure the camera onto the Arm Mount using 2 bolts:

a.      3/8^” for the ax (the bottom part)

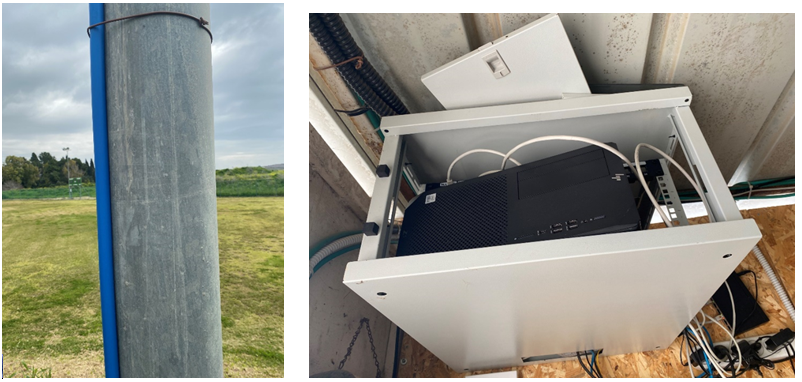

5.  Locate a suitable wall or pole adjacent to the AA camera with a clear and unobstructed view of the field.  The recommended position for the Additional Angle camera is behind the pitcher, on a static wall or pole.

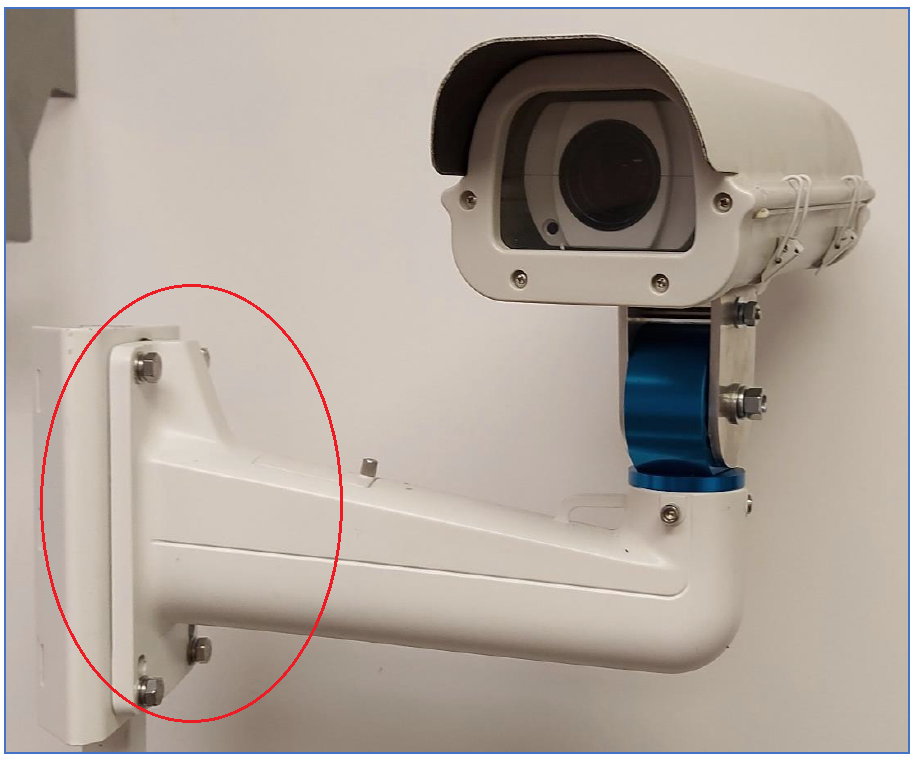

6.  Attach the Arm Mount base to a pole or wall using steel bands or screws.

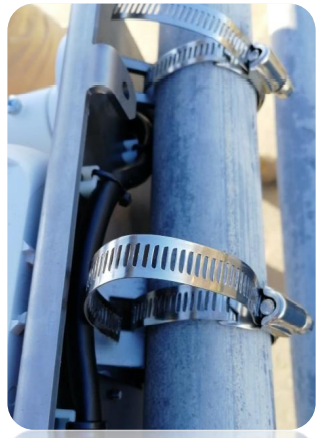

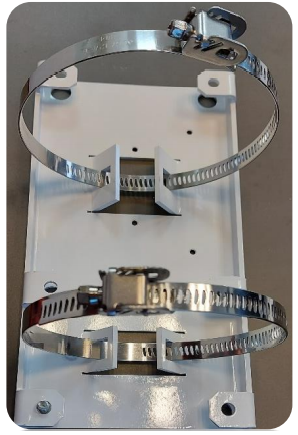

7.  If using bands, release the bands and thread them through the mount holes.

8.  Circle the pole with the bands and tighten until the Arm Mount Base secured to the pole.

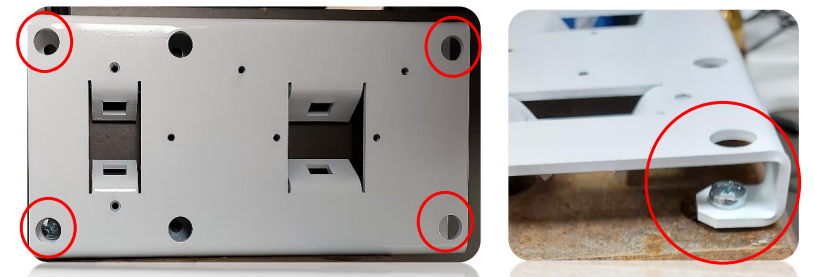

9.  Bolt the Arm Mount with its base:



11.  Connect the AA directly to the Injector using a LAN cat6A and a cable.

Note: Maximum length should be no more than 200m, using no more than one repeater.

5.1  Use Pixellot Connect App to configure the Coaching Kit:

QR Code for downloading the Pixellot Connect App:

5.2  Installation Flow:

Known Limitation:  Additional Angle camera should be configured to static IP by the customer before installation.  Otherwise after power loss it can get unknown IP and won’t be visible for VPU

1. Set static IP to the both additional angle cameras

1. use any subnet that works for you
2. Install the cameras on concrete wall
3. Connect the cameras to local network customer has on site OR use router that you can order from Pixellot

4. Open VPUM Additional Pairing page
5. Select LAN connection pairing
6. Enter both cameras IP
7. Select camera type Additional Angle
1. If you already have Scoreboard camera (PIP\OCR) connected please validate that Scoreboard camera is operational after pairing of Additional Cameras - first time only
2. If needed, repair the Scoreboard camera again - only after first installation

3. You can run LAN pairing and Local pairing on the same system

4. Make sure you select correct camera type during the pairing - Additional Angle or Scoreboard

5. You can see the frame from camera before pairing to select the type

6. You will see the final status indication in the end
8. Open Additional Angle tab to adjust the camera coverage and colors
