1.0 Introduction - S1 Camera Pairing
Camera Pairing defines the Cameras for Calibration, and additional actions by the CMS system, VPU Manager and Engineering Station.
1.1 Prerequisites for Camera Pairing:
- Cameras need to be installed and defined in the VPU.
- CMS Account: User needs an account in the CMS system.
- VPU Name: User needs to know the name of the VPU, the name is on a sticker on the VPU box. The name is the last 4 digits on the S/N:
2.0 Steps for Camera Pairing:
2.1 Login into CMS
2.2 Select the VPU:
2.2.1 Select Inventory on the left side menu.
2.2.3 On the Upper Right Search Box, enter name of VPU (last 4 digits of S/N number).
2.2.4 Open VPU Manager:
- Click onicon to open the VPU Manager.

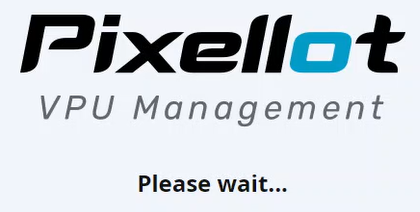

- The following message will appear until the VPU Manager loads:
2.2.5 Pairing:

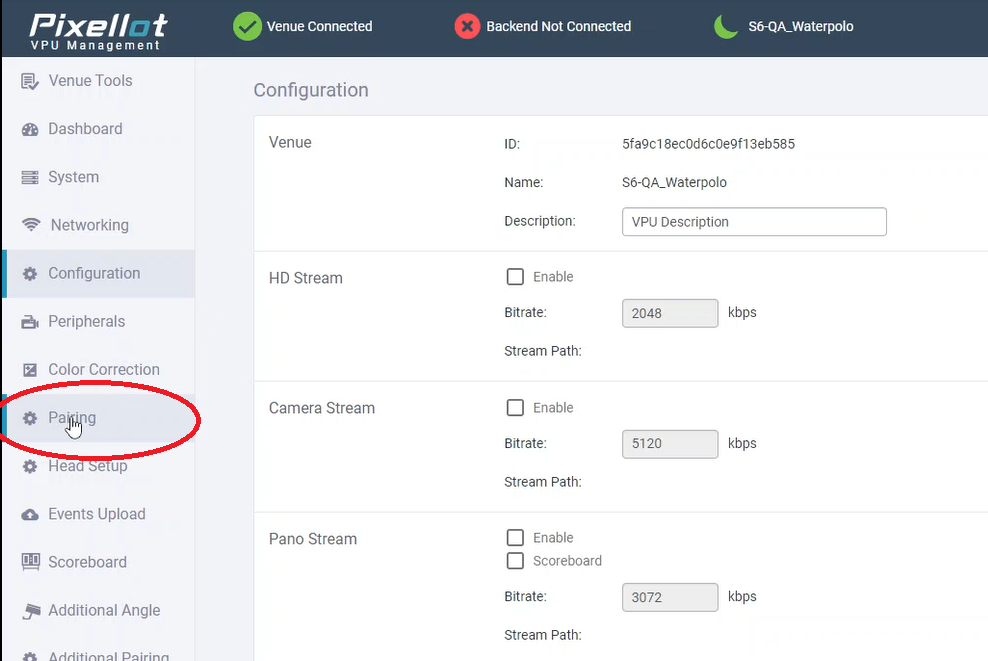

When the VPU Manager opens, click on Pairing on Left Side Menu.
2.2.6 Select Cameras:
A. The Camera P/N (Part Number) should already be defined.

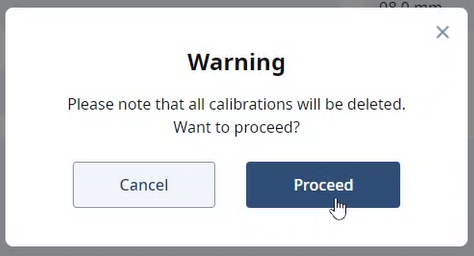

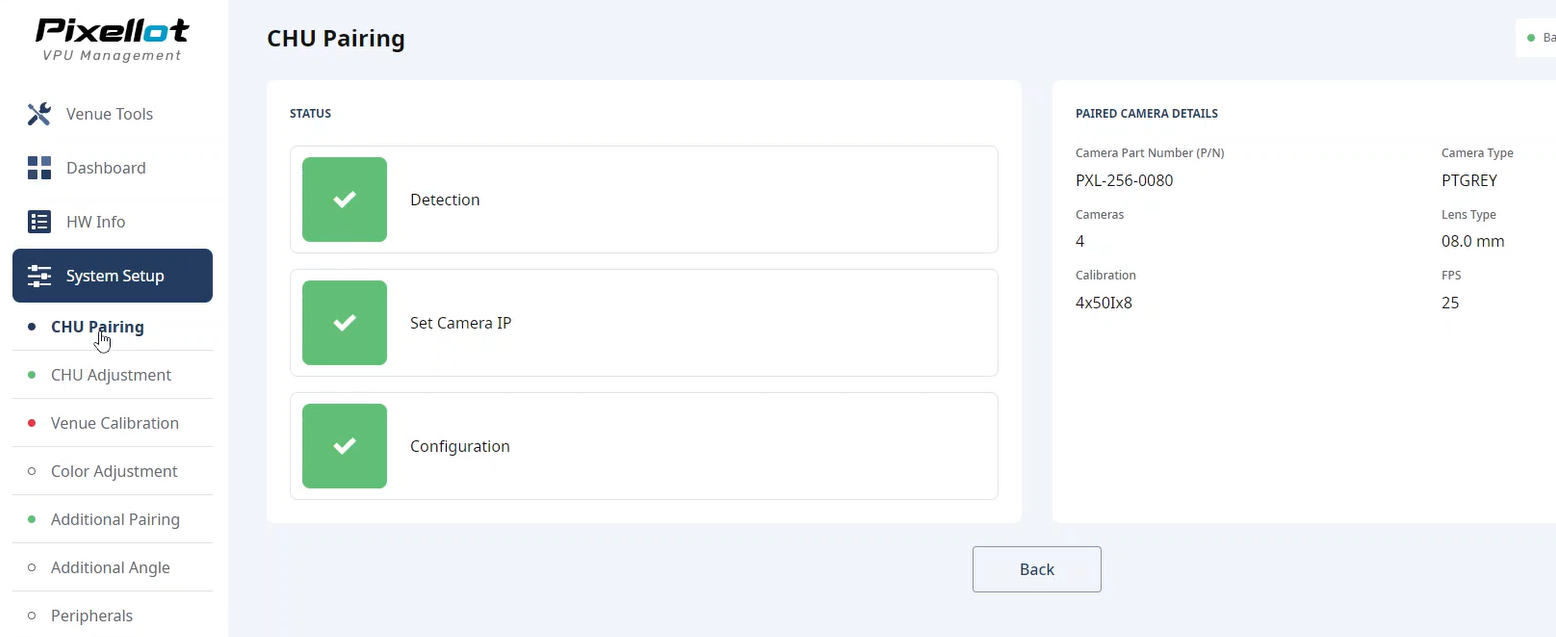

B. Click on APPLY.C. Click on SAVE & PAIR:D. The following Warning will appear, click on PROCEED.E. The Cameras are PAIRED.
3.0 Actions to Perform After Cameras are Paired:
3.1 Now that the Cameras are PAIRED, the following action can be performed:
