Hardware Technical Specifications
1.0 Video Processing Units (VPUs):
1.1 HP Z240 (S1, S2)
VPU HP Z240 | |
Product | HP Z240 |
Form Factor | Tower |
Processor Family | Intel Core™ i7 processor; Intel Core™ i5 processor |
Power | 400 W 92% efficient, wide-ranging, active PFC |
Dimensions | 170 x 442 x 399 mm (6.7 x 17.4 x 15.7 in) Standard desktop orientation |
1.2 HP Z1 (S1, S2)
VPU HP Z1 | |
Product | HP Z1 |
Form Factor | All in One |
Processor Family | Intel Xeon E3-1280 processor |
Power | 400W 90% efficient power supply - wide ranging active PFC |
Dimensions | Minimum dimensions (W x D x H) |
G5: https://support.hp.com/sg-en/document/c06407972
1.3 HP Z2 G9 (Cricket, Double Play, S2, S2S, S3)
VPU HP Z2 | |
Product | HP Z2 |
Form Factor | Tower |
Processor Family | Intel Core™ i9 processor |
Power | Supply700W wide-ranging, active Power Factor Correction, 92% Efficiency. 500W wide-ranging, active PowerQuickSpecsHP |
Dimensions | H: 14" [356mm]W: 6.7" [169mm]D: 15.2" [385mm] |
1.4 HP Z4 (Prime)
VPU HP Z4 | |
Product | HP Z4 |
Form Factor | Tower |
Processor Family | Intel Core™ i9 processor |
Power | 400 W 92% efficient, wide-ranging, active PFC |
Dimensions | 6.7" x 18.3" x 17.5" (170 x 465 x 444 mm) Standard desktop orientation |
https://support.hp.com/us-en/document/c05846113
1.5 HP Z6 (Pixellot C)
VPU HP Z6 | |
Product | HP Z6 |
Form Factor | Tower |
Processor Family | Intel® Xeon® processor Scalable family |
Power | 1000 W/100 V/15 A |
Dimensions | H: 17.5" (445mm) |
https://support.hp.com/id-en/document/c05791619
1.6 HP Z800 (S1, S2)
VPU HP Z800 | |
Product | HP Z800 |
Form Factor | Rackable Minitower |
Processor Family | Intel® Xeon® processor X56xx |
Power | 850W 85% Efficient wide-ranging, active Power Factor Correction |
Dimensions | 44.4 x 20.3 x 52.5 cm; 17.5 x 8.0 x 20.7 inches |
https://support.hp.com/au-en/document/c01709726
2.0 Cameras (CHU):
2.1 JAI / Point Grey (S1)
CHU | |
Dimensions (WxHxD) | 18 x 38 x 22 cm (7 x 15 x 9 in) (with the Mounting Rods) |
Weight | 7 kg (15.4 lb) |
Power Supply | PoE 48 V |
Power Consumption | 15.5 W |
4 X Camera |
|
Product | Point Grey \ Jai |
Image Sensor | 1/2.3" Sony CMOS |
Effective Pixels | 16M (8000 X 2000) |
Network |
|
Interface | GigE, RJ-45, 1 Gbps Ethernet |
General |
|
Start-up Temperature | w/o Heater: -20°C ~ 50°C (-4° ~ 122°F) w/Heater: -50°C ~ 50°C (-58° ~ 122° F) |
Operating Temperature | w/o Heater: -10°C ~ 50°C (14° ~ 122°F) w/Heater: -50°C ~ 50°C (-58° ~ 122°F) |
Humidity | 10% ~ 90%, No Condensation |
Weatherproof Standard* | IP66 |
2 X Mic |
|
Product | Behringer C-2 Condenser |
Pattern | Cardioid |
Max SPL | 140 db |
Frequency response | 20 Hz -20 KHz |
2.2 DynaColor (S2):
CHU | |
Dimensions (WxHxD) | 360 x 210 x 340 mm (14.2 x 8.3 x 13.4 in) |
Weight | 5 kg (11 lb) |
Power Supply | PoE 48 V |
Power Consumption | 11 W |
2 X Camera |
|
Product | DynaHawk Z4SF-5 |
Image Sensor | 25/43 mm (1/1.7") Sony Progressive CMOS |
Effective Pixels | 12M (6000X2000) |
Network |
|
Interface | RJ-45, 1 Gbps Ethernet |
General |
|
Start-up Temperature | w/o Heater: -20°C ~ 50°C (-4° ~ 122°F) w/Heater: -50°C ~ 50°C (-58° ~ 122° F) |
Operating Temperature | w/o Heater: -10°C ~ 50°C (14° ~ 122°F) w/Heater: -50°C ~ 50°C (-58° ~ 122°F) |
Humidity | 10% ~ 90%, No Condensation |
Weatherproof Standard* | IP66 |
2 X Mic |
|
Product | ETS ML1-WS Weather Resistant Mountable Surveillance Microphone |
Pattern | Omni-directional |
Max SPL | 120 db |
Frequency response | 20 Hz -18 KHz |
2.3 Dynacolor S2V4\S2V5 (S2S\Double Play)
CHU | |
Dimensions (WxHxD) | 360 x 210 x 340 mm (14.2 x 8.3 x 13.4 in) |
Power Supply | PoE 48 V |
Power Consumption | 11 W |
1 X Camera |
|
Product | DynaHawk Z4SF-5 |
Image Sensor | 25/43 mm (1/1.7") Sony Progressive CMOS |
Effective Pixels | 12M (6000X2000) |
Network |
|
Interface | RJ-45, 1 Gbps Ethernet |
General |
|
Start-up Temperature | w/o Heater: -20°C ~ 50°C (-4° ~ 122°F) w/Heater: -50°C ~ 50°C (-58° ~ 122° F) |
Operating Temperature | w/o Heater: -10°C ~ 50°C (14° ~ 122°F) w/Heater: -50°C ~ 50°C (-58° ~ 122°F) |
Humidity | 10% ~ 90%, No Condensation |
Weatherproof Standard* | IP66 |
Mic |
|
Product | ETS ML1-WS Weather Resistant Mountable Surveillance Microphone |
Pattern | Omni-directional |
Max SPL | 120 db |
Frequency response | 20 Hz -18 KHz |
2.4 Kaya (Prime)
CHU | |
Dimensions (W x H x D) | 342 x 169 x 186 mm. |
Weight | 3.5 kg |
Power Supply | PoE+ |
Power Consumption | 25 W |
3 X Camera |
|
Full Resolution | 3 x 12 MP |
Effective Pixels | 30 MP |
Field of View (H/V) | Ultra-Wide: 180°/60° Wide: 93°/25° |
Network |
|
Interface | GigE, RJ-45, 1 Gbps Ethernet |
General |
|
Weatherproof Standard* | IP65 |
2 X Mic Stereo |
|
Product | Digital Microphone |
Pattern | omni |
Max SPL | 110 db |
Frequency response | 20 Hz -20 KHz |
2.5 Dynacolor R2SD-G (Additional Cameras [Scoreboard])
CHU | |
Dimensions (WxHxD) | 116x82.6x60 mm |
Weight | 3x 410g (0.9 lb) |
Power Supply | POE DC12V |
Power Consumption | 1.14A, max 13.68 watt |
1 X Camera |
|
Product | Dynacolor R2SD-G |
Image Sensor | 25/76 (1/3") Progressive CMOS |
Effective Pixels | 2720x1536 (4M) |
Network |
|
Interface | 10/100Mbps Ethernet |
General |
|
Storage Conditions | -20°C ~ 70°C (-4° ~ 158°F) |
Operating Temperature | -30°C ~ 55°C (-22° ~131°F) |
Humidity | 10% ~ 90%, No Condensation |
Weatherproof Standard* | na |
2 X Mic |
|
Product | ETS ML1-WS Weather Resistant Mountable Surveillance Microphone |
Pattern | Omni-directional |
Max SPL | 120 db |
Frequency response | 20 Hz -18 KHz |
2.6 Dynacolor S5SD-G (Additional Cameras [Scoreboard])
CHU | |
Dimensions (WxHxD) | 116x82.6x60 mm |
Weight | 490g (1.1 lb) |
Power Supply | PoE DC12V |
Power Consumption | TBD |
1 X Camera |
|
Product | Dynacolor S5SD-G |
Image Sensor | 25/71 (1/2.8") Progressive CMOS |
Effective Pixels | 2065x1553 (3M) |
Network |
|
Interface | 10/100Mbps Ethernet |
General |
|
Storage Conditions | -20°C ~ 70°C (-4° ~ 158°F) |
Operating Temperature | w/o Heater: -25°C ~ 50°C (-13° ~ 122°F) w/Heater: -40°C ~ 50°C (-40° ~ 122°F) |
Humidity | 10% ~ 90%, No Condensation |
Weatherproof Standard* | na |
2 X Mic |
|
Product | ETS ML1-WS Weather Resistant Mountable Surveillance Microphone |
Pattern | Omni-directional |
Max SPL | 120 db |
Frequency response | 20 Hz -18 KHz |
2.7 Pixellot S3
Dimensions (W x H x D) | 342 x 169 x 186 mm. |
Weight | 3.5 kg |
Power Supply | PoE+ |
Power Consumption | 25 W |
3 X Camera |
|
Full Resolution | 3 x 12 MP |
Effective Pixels | 30 MP |
Field of View (H/V) | Ultra-Wide: 180°/60° Wide: 93°/25° |
Network |
|
Interface | GigE, RJ-45, 1 Gbps Ethernet |
General |
|
Weatherproof Standard* | IP65 |
2 X Mic Stereo |
|
Product | Digital Microphone |
Pattern | omni |
Max SPL | 110 db |
Frequency response | 20 Hz -20 KHz |
3.0 Additional Equipment:
3.1 Switches
3.1.1 Router / Switch: D-Link DGS-1008A - 8-Port Gigabit Easy Desktop Switch
Specifications
1000Base-T Interface | 8 |
Auto MDI/MDIX | Yes |
Switching Capacity | 16 Gbps |
Max. Packet Forwarding Rate | 11.9 Mpps |
Store & Forwarding Forwading | Yes |
Dimension | 130 x 79 x 22mm |
Weight | 0.13 kgs |
Operation Temperature | 0 ~ 40 °C |
Storage Temperature | - 10 ~ 70 °C |
Operation Humidity | 0% ~ 95% RH |
Storage Humidity | 0% ~ 95% RH |
Operating Altitude | 2000m |
Maximum Power Consumption | 4.80 W |
Standby Power Consumption | 0.7 W |
Maximum Heat Dissipation | 16.368 BTU/h |
MTBF | 1,061,267 hours |
Power Input | AC：100 ~ 240 V |
Flash Memory Size | 64KBytes |
Packet Buffer Size | 192KBytes |
FAN | Fanless |
Comply with RoHS 6 | Yes |
Energy Efficiency Ethernet (EEE) | Yes |
Power Saving By Link Status | Yes |
Power Saving By Cable Length | Yes |
MAC Address Table Size | 4K |
802.3x Flow Control | Yes |
Head-of-line (HOL) Blocking Prevention | Yes |
Jumbo Frame | 9,720 Bytes |
Surge/Lightning Protection (AC Power Inet) | 1kV |
Surge/Lightning Protection (All Ethernet Ports) | 1kV |
Air Discharge | 8kV |
Switch intelligence | Unmanaged |
Port count | 1000Base-T Interface x 8 |
Contact Discharge | 4kV |
1000Base-T Interface | 8 |
Auto MDI/MDIX | Yes |
Switching Capacity | 16 Gbps |
Max. Packet Forwarding Rate | 11.9 Mpps |
Store & Forwarding Forwading | Yes |
Dimension | 130 x 79 x 22mm |
Weight | 0.13 kgs |
Operation Temperature | 0 ~ 40 °C |
Operation Humidity | 0% ~ 95% RH |
Storage Temperature | - 10 ~ 70 °C |
Storage Humidity | 0% ~ 95% RH |
Operating Altitude | 2000m |
Maximum Power Consumption | 4.80 W |
Standby Power Consumption | 0.7 W |
Maximum Heat Dissipation | 16.368 BTU/h |
MTBF | 1,061,267 hours |
Power Input | AC：100 ~ 240 V |
Flash Memory Size | 64KBytes |
Packet Buffer Size | 192KBytes |
FAN | Fanless |
Comply with RoHS 6 | Yes |
Energy Efficiency Ethernet (EEE) | Yes |
Power Saving By Link Status | Yes |
Power Saving By Cable Length | Yes |
MAC Address Table Size | 4K |
802.3x Flow Control | Yes |
Head-of-line (HOL) Blocking Prevention | Yes |
Jumbo Frame | 9,720 Bytes |
Surge/Lightning Protection (AC Power Inet) | 1kV |
Surge/Lightning Protection (All Ethernet Ports) | 1kV |
Air Discharge | 8kV |
Contact Discharge | 4kV |
3.2 Behringer
3.2.1 Behringer UMC204HD
Audio Device |
|
Product | Behringer UMC204HD |
Type | 2 x XLR/TRS combo connector |
Phantom power | +48 V, switchable |
Frequency response | 10 Hz – 50 kHz |
Computer Bus Connectivity | USB 2.0, type B |
3.3 P2P

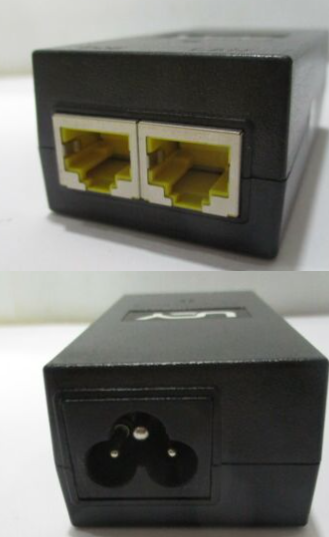

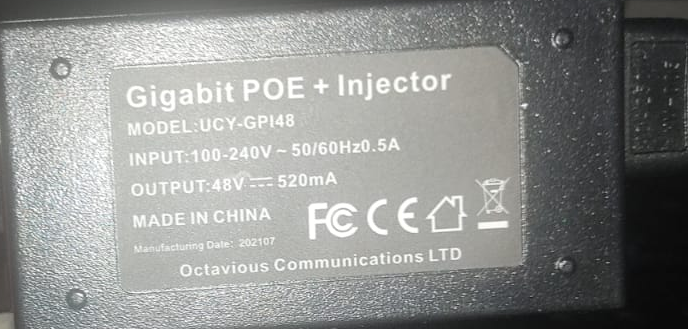

3.4 POE Injector:
