Scoreboard Platform Quickstart Guide
About Pixellot
Pixellot offers automated sports production solutions that provide affordable alternatives to traditional video capture, production, and distribution systems for professional and semi-professional sports events. Founded in 2013, Pixellot’s AI technology solution streamlines production workflow by deploying an unmanned multicamera system in a fixed location, with additional angles as required, to cover the entire field, offering a stitched panoramic image. Advanced algorithms enable automatic coverage of the flow of play and generate highlights. Pixellot systems are deployed by broadcasters, production companies, clubs, federations, universities, high schools, sports portals, and coaching solution providers around the globe.
For more information visit:
www.pixellot.tv
Legal Notice
This document contains proprietary and confidential material of Pixellot Ltd. Any unauthorized reproduction, use, or disclosure of this material, or any part thereof, is strictly prohibited. This document is solely for the use of Pixellot employees and authorized Pixellot customers.
The material furnished in this document is believed to be accurate and reliable. However, no responsibility is assumed by Pixellot Ltd. for the use of this document or any material included herein. Pixellot Ltd. reserves the right to make changes to this document or any material included herein at any time and without notice.
For more information visit:
www.pixellot.tv
Copyright © 2022 Pixellot Ltd.
All Rights Reserved.
1.0 Introduction
1.1 Controlling the Scoreboard from the App
- Open the Pixellot Mobile Application
- Ensure you are logged in as an administrator

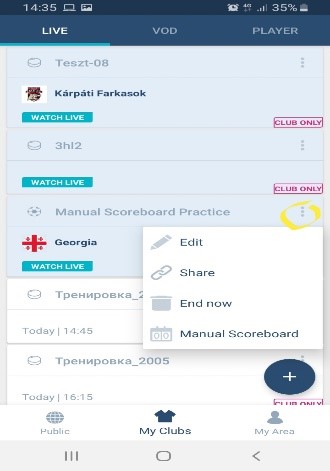

- Once the event is live, click the
icon next to the event name
- Click on Manual Scoreboard

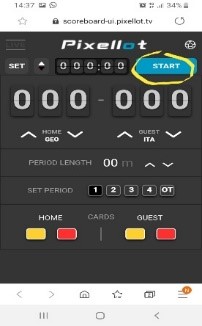

- The Scoreboard Controller opens
- Set the time counter
and click Start to start the clock
- You can also add goals and change the time period using the controllers.
1.2 Controlling the Scoreboard from the CMS
- Go to the events tab at https://club.pixellot.tv/
- Click the pencil
to enter the event settings
- Ensure the event has begun, and copy the link at the bottom of the page.
-

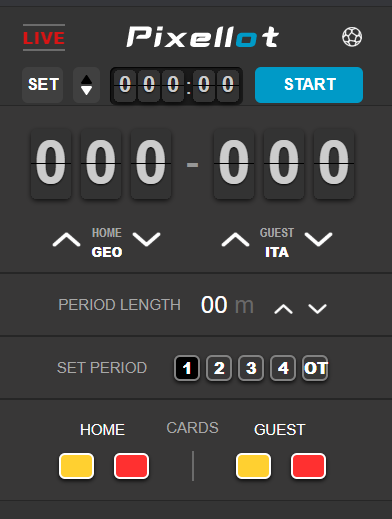

Open a new browsing page, paste the above link and game controllers will appear:
The link can be sent to any mobile receiver and can be run from the webpage. - Control the game scoreboard:
- Set the time up or down
- Hit the Start button when the game begins
&
- Update Home and Away team goals
- Update Period 1-2-3-4 or OT when necessary
